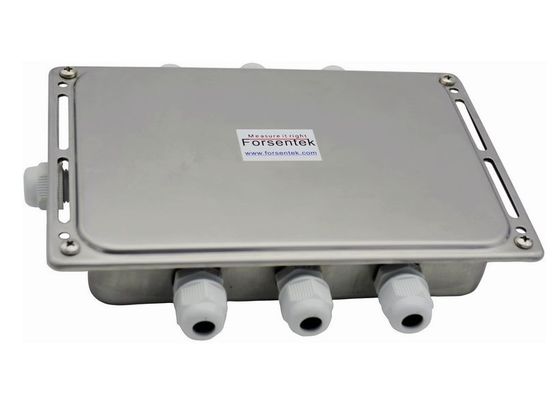

6-chanel load cell signal summing box for five load cells connection

6-chanel load cell signal summing box for five load cells connection

    • 6-chanel load cell signal summing box for five load cells connection
    • 6-chanel load cell signal summing box for five load cells connection
    • 6-chanel load cell signal summing box for five load cells connection
    • 6-chanel load cell signal summing box for five load cells connection
    • 6-chanel load cell signal summing box for five load cells connection
  • 6-chanel load cell signal summing box for five load cells connection

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: BJ6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Carton(1pc per box)
    Delivery Time: 3-10 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Housing: Stainless Steel No. Of Load Cell: 2-6
    Connection: Clamping Terminals

    Load cell signal summing box for five load cells

    junction box for five load cells

    load cell datasheet




    Brief instruction

    --Stainless steel housing

    --L*W*H: 206*134*38(mm)

    --Net weight: 682g

    --IP65 ingress protection

    --Clamping terminals for easy wiring

    --Applicable cable diameter: Φ3.5~Φ6.5

    --For 2~6 load cells





    Dimensions
     6 load cell junction box
    Inside view

    load cell summing box wiring

    • Clip terminals J1~J6 are for load cell connection

    • Potentiometers W1~W6 are for signal trimming

    • Terminal "indicator" is for indicator connection

    • Wiring code: E+/E- --- Excitation+      - S+/S- --- Signal+/-

    • Recommended cable diameter: Ø3.5~Ø6.5mm

    • Signal trimming for 2-6 load cells



    Application example

    junction box for batch weighing

    Load cell junction box enables the parallel connection of multiple load cells and gives a summated output.The sensitivity difference of load cells can be trimmed seperately by corresponding potentiometer to compensate the corner error.Widely used for weighing applications where more than multiple load cells are involved such as tank weighing system,hopper weighing systems,batch weighing system,silo weighing,truck scales,platform scales,etc..

    Summing box for five load cells
