| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FMZC |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-25 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 50000pcs/month |
| Type: | Miniature Load Cell Sensor | Capacity: | 2kg 3kg 5kg 10kg |
|---|---|---|---|
| Output: | Analog Transducer | Structure: | Single Ended Beam Type |
| Usage: | Weight Measurement |
Mini load cell 2kg 3kg 5kg 6kg 10kg small size load cell sensor
Features
Specifications
| Rated capacity |
2kg / 20N / 4.4lb 3kg / 30N / 6.6lb 5kg / 50N / 11lb 10kg / 100N / 22lb |
||
| Rated output | 1.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-10V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.05% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.05% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 1020±100 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 1020±20 ohms |
| Creep(2min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 120% F.S. | Ingress protection | IP62 |
| Ultimate overload | 200% F.S. | Material of element | Aluminum |
| Cable | AWG32*180mm(Longer cable upon request) | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
Miniature load cell FMZC is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.

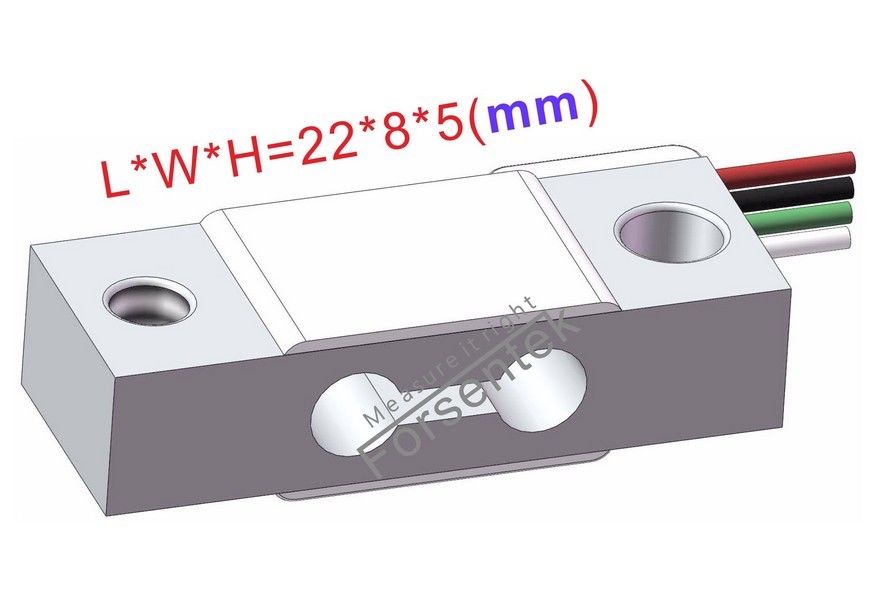

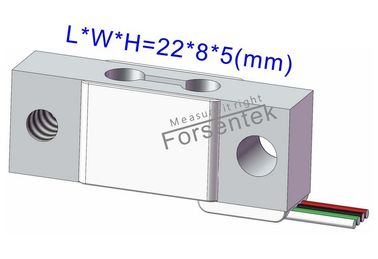

With 22mm total length,small load cell FMZC is very suitable for force monitoring where space is limited. Custom design service is available for different applications.

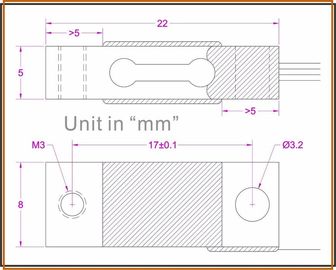

Dimensions
