Torque measurement device measuring torque Reaction torque meter

Torque measurement device measuring torque Reaction torque meter

    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
    • Torque measurement device measuring torque Reaction torque meter
  • Torque measurement device measuring torque Reaction torque meter

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FT04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 20NM 50NM 100NM 200NM 300NM 500NM
    Type: Reaction Type Torque Sensor Principle: Strain Gauge Torque Sensor

    Torque measurement device measuring torque

    torque measurement device
    Features

    • Stainless steel construction
    • Strain gauge technology,analog output
    • Flange to square drive connection
    • Reaction torque measurement,non-rotating torque measurement
    • Tailor-made service available

    torque sensor 3/4 inch

    Specifications

    Rated capacity  20NM  50NM 100NM 200NM 300NM 500NM
    Rated output  1.5 mV/V
    Excitation  3-15V
    Zero balance  ±2% R.O.
    Nonlinearity  ±0.2% R.O.
    Hysteresis  ±0.2% R.O.
    Nonrepeatability  ±0.1% R.O.
    Creep(10min)  ±0.1% R.O.
    Safe overload  150% F.S.
    Ultimate overload  200% F.S.
    Compensated temp.  -10...+40oC
    Operating temp.  -20...+60oC
    Temp. shift zero  ±0.01% R.O./oC
    Temp. shift span  ±0.01% R.O./oC
    Input resistance  350±30 ohms
    Output resistance  350±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP60
    Material of element  Stainless steel
    Cable  Ø5*3000mm 4-core shielded
    Wiring code

    Clockwise@

    Red--Exc+ Black--Exc-  Green--Sig+ White--Sig-



    Reaction type torque sensor square drive to flange mounting
    torque sensor 3/4"

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. Torque transducer can be devided into two types:rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensors are able to measure both rotating torque and non-rotating torque while reaction torque transducers can only measure non-rotating torque or torque with small rotating angle.

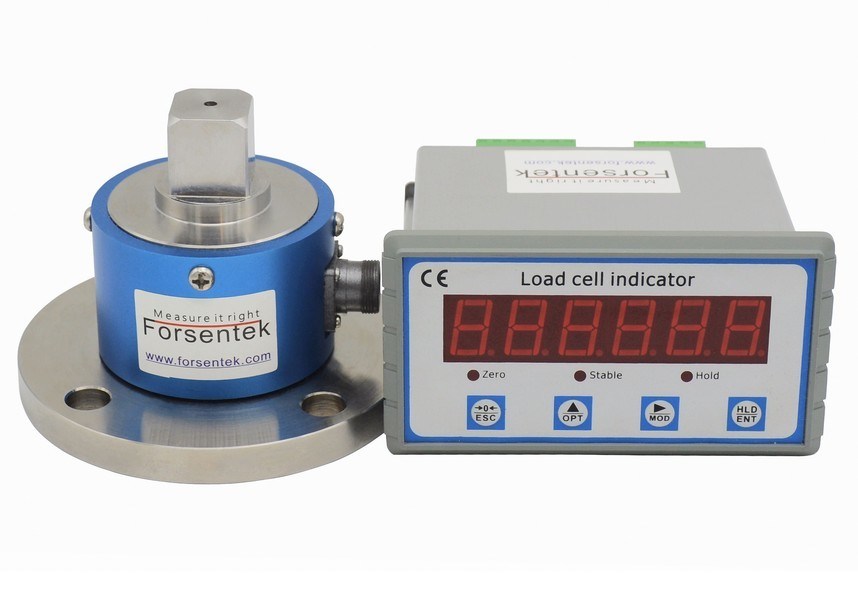

    Flange to square drive reaction torque transducer FT04 is designed to measure static torque which is also known as reaction torque.The output range of FT04 is normally between -20~20mV proportional to the applied torque, signal conditioner can be used to get -5~5V,-10~10V,0-5V,0-10V or 4-20mA output for easy data acquisition.

    torque meter

    Torque indicator can be used to display the torque value.Digital meter FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA which is proportional to the measured value.

    torque measurement unit

    Dimensions

    3/4 in square torque sensor



    Click here to download datasheet
