| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | F3H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 5-25 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1000pcs/month |
| Usage: | 3 Axis Force Measurement | Type: | Analog Sensor |
|---|---|---|---|
| Principle: | Strain Gauge Based | Material: | Stainless Steel |

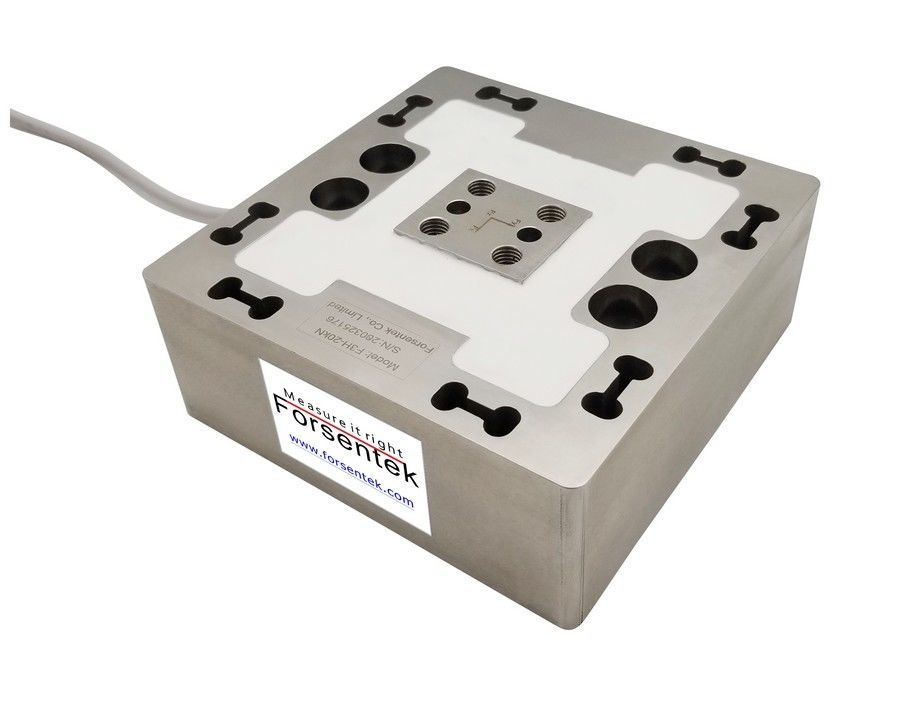

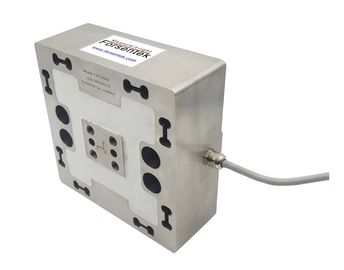

Multi axis load cell 5000kg 3-axis force sensor 50kN triaxial force transducer
Multi axis load cell F3H is designed to measure force in Fx/Fy/Fz at the same time with 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN measuring ranges to choose from,each axis is able to measure force in both tension and compression direction.Stainless steel construction,low profile design makes F3H suitable for 3-axis force measurement applications with limited mounting space.Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Dimensions(in milimeter)
Specifications
| Rated Capacity |
2KN 3KN 5KN 10KN 20KN 30KN 50KN |
| Sensitivity | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Non-repeatability | ±0.1% R.O. |
| Creep(5min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø6*3000mm 12-pin shield |
| Wiring code | 4-wire connection for each axis |
