    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FFT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 4-5 working weeks
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Type: Force And Torque Sensor Output: Analog Output
    Material: Aluminum Alloy Torque Range: 20NM
    Force Range: 3kN

    Force and torque sensors 2-axis force sensor force torque transducer

    force torque transducer



    Features

    • Aluminum construction,flange to flange mounting
    • Strain gauge technology,analog signal output
    • Torque measurement and force measurement combined in one sensor
    • Customizable(Dimensions,material,torque range,force range...)

    Specifications

    Capacity 20NM/3kN
    Rated output 1.5/1.0mV/V
    Excitation 3-15V
    Zero balance ±3% R.O.
    Nonlinearity ±0.3% R.O.
    Hysteresis ±0.3% R.O.
    Nonrepeatability ±0.2 R.O.
    Creep(5min) ±0.1 R.O.
    Safe overload 120% F.S.
    Ultimate overload 150% F.S.
    Compensated temp. 0...+40oC
    Operating temp. -10...+60oC
    Temp. shift zero ±0.03% R.O./oC
    Temp. shift span ±0.01% R.O./oC
    Input resistance 700/380 ohms
    Output resistance 700/350 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Aluminum alloy
    Cable Ø3.3*3000mm
    Wiring code Red--E+ Black--E- Green--S+ White--S-



    Force torque transducer FFT

    force and torque transducer

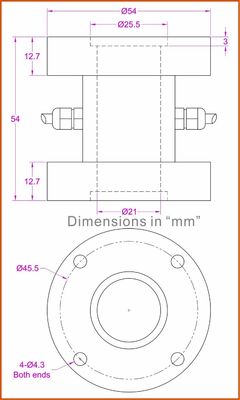

    Dimensions

    force torque sensor

    force torque sensor PDF
