Home ProductsOther products

1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in

1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in

    • 1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in
    • 1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in
    • 1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in
    • 1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FTE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 7-15 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Type: Reaction Type Torque Sensor Capacity: 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 15NM 20NM
    Output: Analog Output Mounting: Flanged Mounting

    1lb-in torque measurement 2 lb-in torque sensor 5lb-in torque transducer 10 lb*in

    1lb-in torque measurement 2 lb-in

    Features

    • Aluminum construction,miniature size
    • Flange to flange structure,easy to insall
    • Analog output,high accuracy
    • Reaction torque measurement

    Specifications

    Capacity

    0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM

    10NM 12NM 15NM 20NM
    Rated output 1.0 mV/V
    Excitation 3-15V
    Zero balance ±2% R.O.
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 120% F.S.
    Ultimate overload 150% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% R.O./oC
    Temp. shift span ±0.01% R.O./oC
    Input resistance 700ohms
    Output resistance 700ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element

    0-5NM: Aluminum alloy

    10-20NM: Stainless steel
    Cable Ø3.5*3000mm 4-core shielded
    Wiring code Red--E+ Black--E- Green--S+ White--S-

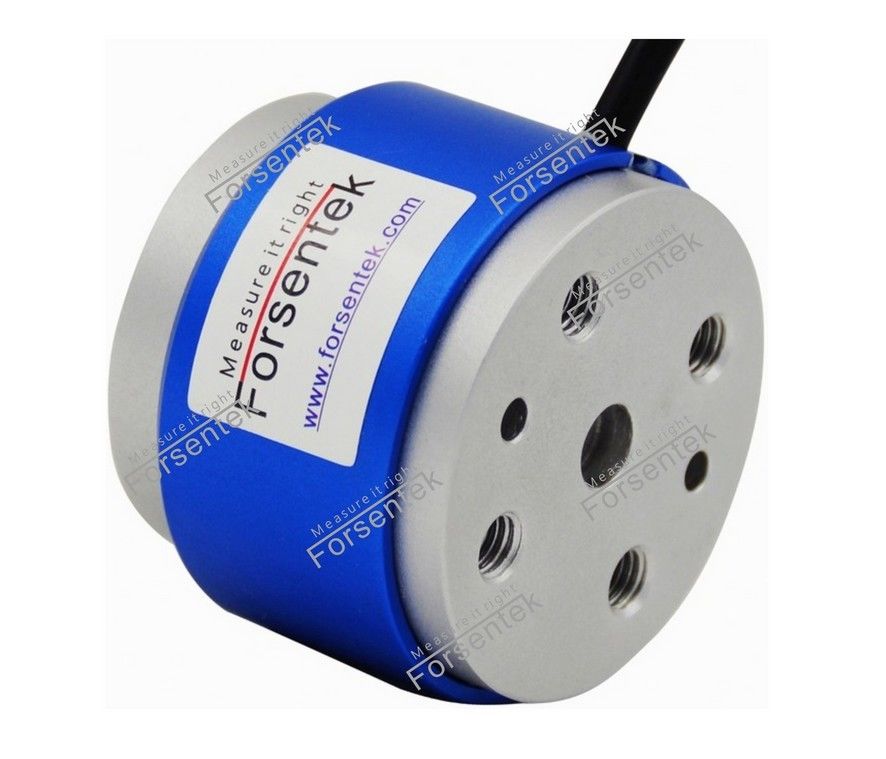

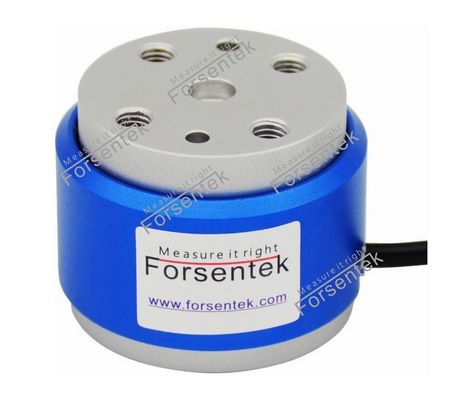

    Miniature torque transducer FTE for reaction torque measurement

    2 lb-in torque sensor 5lb-in

    Dimensions

    2lb-in torque measurement 5 lb*in

    torque transducer pdf
