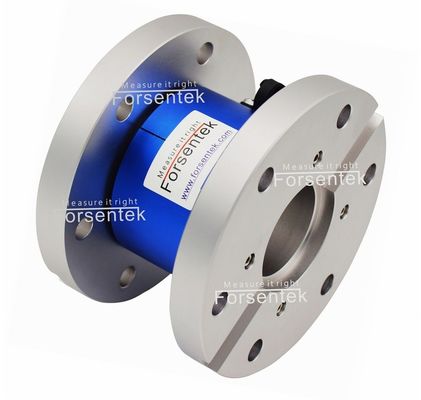

1000NM Motor torque measurement sensor 500NM torque transducer 300NM

1000NM Motor torque measurement sensor 500NM torque transducer 300NM

    • 1000NM Motor torque measurement sensor 500NM torque transducer 300NM
    • 1000NM Motor torque measurement sensor 500NM torque transducer 300NM
    • 1000NM Motor torque measurement sensor 500NM torque transducer 300NM
    • 1000NM Motor torque measurement sensor 500NM torque transducer 300NM

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FTF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Mounting: Flange-to-flange Capacity: 0-1000NM(Selectable)
    Type: Reaction Torque Transducer Principle: Strain Gauge Torque Sensor
    Structure: Hollow Flanged

    1000NM Motor torque measurement sensor 500NM torque transducer 300NM

    • Flange to flange design,through hole structure.
    • Strain gauge technology,analog output.
    • 6-wire connection as stardard,4-wire connection also available.
    • Reaction torque measurement,non-rotating torque measurement,can be used to measure rotating torque of motors.
    • Customizable

    1000NM Motor torque measurement 500NM
    Specifications

    Rated capacity

    10Nm / 88.5lbf-in / 1kg*m
    20Nm / 177in-lb / 2kg*m
    30N-m / 266lbf*in / 3kg-m
    50N*m / 443lb*in / 5kg*m
    100Nm / 885in-lb / 10kg*m
    200N*m / 1770lbf-in / 20kg*m
    300N-m / 2655lbf*in / 30kg-m
    500N*m / 4425lb*in / 50kg*m
    700Nm / 6195in-lb / 70kg*m
    1000N*m / 8850lb-in / 100kg*m

    (Customizable)
    Rated output 1.0 mV/V Compensated temp. -10...+40oC
    Excitation 3-15V Operating temp. -20...+60oC
    Zero balance ±0.05mV/V Temp. shift zero ±0.02% R.O./oC
    Nonlinearity ±0.2% R.O. Temp. shift span ±0.02% R.O./oC
    Hysteresis ±0.2% R.O. Input resistance 750±100 ohms
    Nonrepeatability ±0.2% R.O. Output resistance 700±10 ohms
    Creep(10min) ±0.1% R.O. Insulation resistance >2000M ohms
    Safe overload 150% F.S. Ingress protection IP50
    Ultimate overload 200% F.S. Material of element <500NM Aluminum alloy
    >300NM Stainless steel
    Cable Ø5.8*4000mm 6-core shielded cable with mating connector
    Wiring code

    Clockwise@

    Red--Exc+ Black--Exc-

    Yellow--Sen+ Blue--Sen-

    Green--Sig+ White--Sig-



    Flange to flange type motor torque measurement sensor FTF

    500NM Motor torque measurement sensor 300NM

    Dimensions

    500NM torque transducer 300NM

    Click here to download datasheet
