500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg

China 500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg supplier
500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg supplier 500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg supplier 500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg supplier

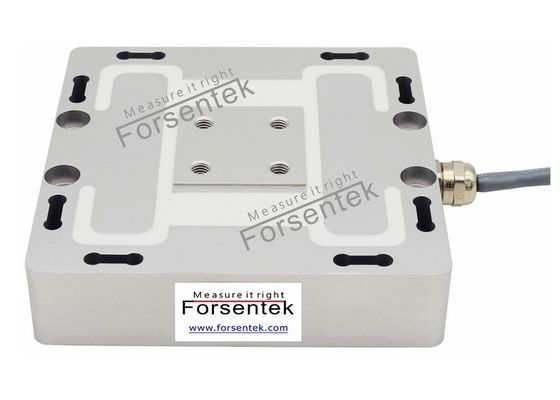

Large Image :  500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Certification: CE
Model Number: F3F

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Shockproof carton
Delivery Time: 5-25 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1700pcs/month
Contact Now
Detailed Product Description
Usage: Multi-axis Force Measurement Force Range: 5kN 3kN 2kN 1kN 500N 300N 200N
Output: Analog Transducer Type: Triaxial Force Sensor

500kg Multi-axis load cell 300kg 3-axis load cell 200kg multi-axis sensor 100kg

Low Profile Triaxial Force Sensor F3F is designed to measure force in Fx/Fy/Fz at the same time. Multi-axis Load Cell F3F offers 45lb / 67lb / 112lb / 225lb / 450lb / 675lb / 1.12klb seven rated capacities for each axis to choose from, each channel is able to measure force in both tension and compression direction. Low profile design makes tri-axial load cell F3F suitable for 3-axis force measurement applications with limited mounting space.You may find Multi-component force transducer F3F interchangeable with interface 3d force load cell 3A120 series. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

500kg Multi-axis load cell 300kg

Specifications

Rated capacity200N / 45lb / 20kg
300N / 67lb / 30kg
500N / 112lb / 50kg
1000N / 225lb / 100kg
2000N / 450lb / 200kg
3000N / 675lb / 300kg
5000N / 1.12klb / 500kg
Rated output1.0 mV/VCompensated temperature0...+40oC
Excitation3-15VOperating temperature-10...+60oC
Zero balance±0.05mV/VTemperature shift zero±0.03% R.O./oC
Nonlinearity±0.3% R.O.Temperature shift span±0.02% R.O./oC
Hysteresis±0.3% R.O.Input resistance700±100 ohms
Nonrepeatability±0.1% R.O.Output resistance700±100 ohms
Creep(5min)±0.05% R.O.Insulation resistance>2000Mohms
Safe overload150% F.S.Ingress protectionIP65
Ultimate overload200% F.S.Material of elementAluminum/Stainless
CableØ6*3000mm 12-core shielded cable
Wiring4-wire connection for each axis

Multi-axis force sensor F3F for 3-axis force measurement
100kg 3-axis load cell 200kg
Dimensions(Unit in "mm)

200kg multi-axis sensor 100kg

Click here to download datasheet
