Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement

Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement

    • Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement
    • Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement
    • Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement
  • Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: F3G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 5-25 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Usage: Three-axis Force Measurement Force Range: 20N 30N 50N 100N 200N 300N 500N 1000N
    Type: Analog Sensor Principle: Strain Gauge Based

    Triaxial load cell 100kg tri-axial force sensor 1kN tri axis force measurement

    Triaxial load cell F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics,automotive crash testing,industrial test benches,grinding force control,actuator operating force measurement and so on.

    triaxial load cell 100kg

    Specifications

    Rated Capacity Fx/Fy/Fz-20N 30N 50N 100N 200N 300N 500N 1000N
    Sensitivity 1.0mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Non-linearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(5min) ±0.05% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature 0...+40oC
    Operating temperature -10...+60oC
    Temperature shift on zero ±0.03% R.O./oC
    Temperature shift on span ±0.02% R.O./oC
    Input resistance 385±50 ohms
    Output resistance 350±10 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP62
    Material of element

    <100N Aluminum alloy

    >50N Stainless steel

    Cable Ø6*3000mm 12-pin shielded cable
    Wiring code 4-wire connection for each axis


    Multi axis load cell 1kN 500N 300N 200N 100N 50N 20N triaxial load cell
    triaxial force sensor 1kN

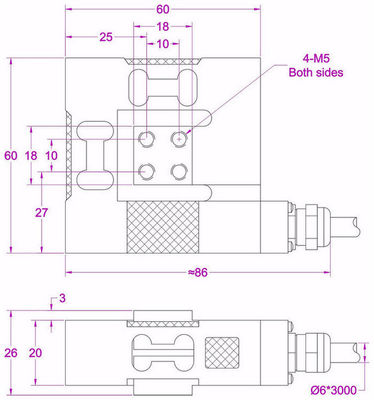

    Dimensions(Unit in "mm)

    triaxial load cell 100kg

    Ordering code of tri-axial load cell F3G

    Ordering

    code

    Capacity Material
    Fx=Fy Fz
    F3G-20N 20N 20N







    Aluminum alloy

    F3G-20-20-30 30N
    F3G-30N 30N 30N
    F3G-30-30-50 50N
    F3G-50N 50N 50N
    F3G-50-50-100 100N
    F3G-100N 100N 100N







    Stainless steel

    F3G-100-100-200 200N
    F3G-200N 200N 200N
    F3G-200-200-300 300N
    F3G-300N 300N 300N
    F3G-300-300-500 500N
    F3G-500N 500N 500N
    F3G-500-500-1k 1kN
    F3G-1kN 1kN 1kN

    triaxial load cell pdf
