Multi axis load cell 300N triaxial force sensor 30kg tri-axial load cell

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Model Number:	F3G

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	5-25 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Usage:	Three-axis Force Measurement	Force Range:	20N 30N 50N 100N 200N 300N 500N 1000N
Type:	Analog Sensor	Principle:	Strain Gauge Based

Multi axis load cell 300N triaxial force sensor 30kg tri-axial load cell

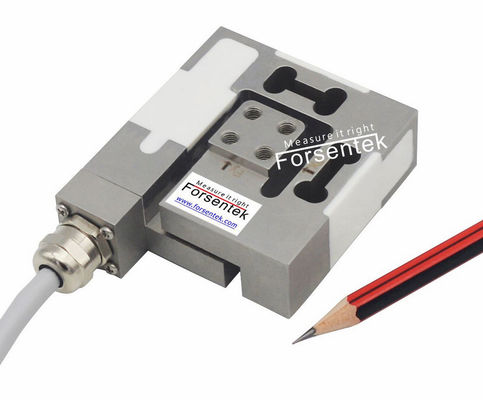

Multi axis load cell F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics,automotive crash testing,industrial test benches,grinding force control,actuator operating force measurement and so on.

multi axis load cell 300N

Specifications

Rated Capacity	Fx/Fy/Fz-20N 30N 50N 100N 200N 300N 500N 1000N
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.2% R.O.
Hysteresis	±0.2% R.O.
Non-repeatability	±0.1% R.O.
Creep(5min)	±0.05% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift on zero	±0.03% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	385±50 ohms
Output resistance	350±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	<100N Aluminum alloy >50N Stainless steel
Cable	Ø6*3000mm 12-pin shielded cable
Wiring code	4-wire connection for each axis

Multi axis force sensor 1kN 500N 300N 200N 100N 50N 20N triaxial load cell force sensor
3 axis load cell 300N

Dimensions(Unit in "mm)

triaxial load cell 300N

Ordering code of triaxial load cell force sensor F3G

Ordering code	Capacity		Material
Ordering code	Fx=Fy	Fz	Material
F3G-20N	20N	20N	Aluminum alloy
F3G-20-20-30	20N	30N
F3G-30N	30N	30N
F3G-30-30-50	30N	50N
F3G-50N	50N	50N
F3G-50-50-100	50N	100N
F3G-100N	100N	100N	Stainless steel
F3G-100-100-200	100N	200N
F3G-200N	200N	200N
F3G-200-200-300	200N	300N
F3G-300N	300N	300N
F3G-300-300-500	300N	500N
F3G-500N	500N	500N
F3G-500-500-1k	500N	1kN
F3G-1kN	1kN	1kN
