OMEGA LC703-100 Miniature Low Profile Tension Link Load Cell LC703-200

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Model Number:	FLCE

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	3-20 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Capacity:	500N 1KN 2KN 3KN 5KN 10KN
Output:	Analog Output	Principle:	Strain Gauge Load Cell
Type:	Compression And Tension Load Cell

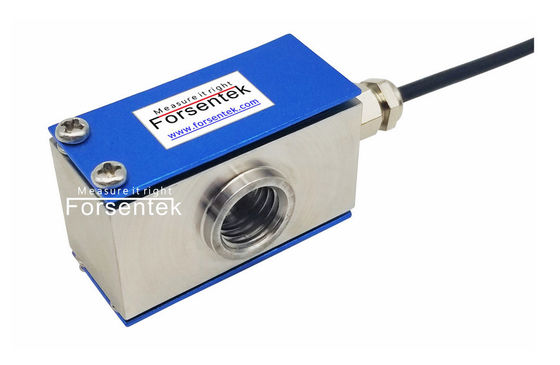

OMEGA LC703-100 Miniature Low Profile Tension Link Load Cell LC703-200
Tension compression load cell FLCE is strain gauge based to deliver mV/V output proportional to the measured force.FLCE series load cells are made of stainless steel,the unique low profile sturcture of FLCE series provides excellent stability for in line applications for tension and/or compression force measurement,while saving mounting space at the same time.Low profile force transducer FLCE can be modified or customized according to client’s specific requirements.
OMEGA LC703-100
Specifications

Capacity	500N 1kN 2kN 3kN 5kN 10kN (Contact us for other capacities)
Rated output	2.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Nonlinearity	±0.15% R.O.
Hysteresis	±0.15% R.O.
Nonrepeatability	±0.05% R.O.
Creep(5min)	±0.05% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	700±100 ohms
Output resistance	700±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Stainless steel
Cable	Ø3.2*2000mm
Wiring code	Red--E+ Black--E- Green--S+ White--S-

Low profile tension link load cell interchangable with OMEGA LC703 series load cells
OMEGA LC703-200
Dimensions(in milimeter)
OMEGA LC703-150
Ordering Code:
FLCE-500N (Measuring range 0-500N,tension/compression)
FLCE-1kN (Measuring range 0-1000N,tension/compression)
FLCE-2kN (Measuring range 0-2000N,tension/compression)
FLCE-3kN (Measuring range 0-3000N,tension/compression)
FLCE-5kN (Measuring range 0-5000N,tension/compression)
FLCE-10kN (Measuring range 0-10kN,tension/compression)
