| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FTF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T,Paypal |
| Supply Ability: | 2000pcs/month |
| Material: | Aluminum Or Stainless Steel | Capacity: | 100NM~1000NM |
|---|---|---|---|
| Type: | Reaction Torque Sensor | Principle: | Strain Gauge Torque Sensor |

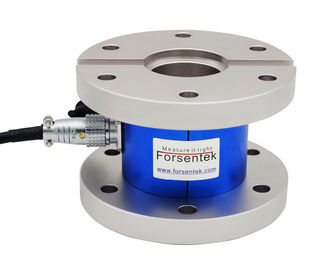

Futek reaction torque sensor TFF600 FUTEK torque sensor FSH04020
Thru hole reaction torque sensor FTF can accommodate applications that include automotive braking, engine and transmission dynamometers, torque tables, fastener testing, aircraft engine testing, and marine shaft torque measurements with shaft horsepower monitors. Model FTF is available in both aluminum and 17-4 PH stainless-steel construction and offers a unique solution for torque auditing applications. The TFF600 can be used to evaluate low-torque components and controls by measuring small-reaction torque levels using flange-to-flange connections in-line with the component undergoing testing.The standard TFF600 Reaction Torque Sensor with Thru Hole Center can be modified or customized to meet your requirements. Torque transducer TFF600 uses metal foil strain gauge technology. This specific model is designed with flanges, enabling easy installation or adaptation; it is rugged enough for factory use, yet accurate enough for the laboratory. Available torque ranges are 100NM/200NM/300NM/500NM/700NM/1000NM.
Specifications
| Rated capacity |
100NM 200NM 300NM 500NM 700NM 1000NM |
| Rated output | 1.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±3% R.O. |
| Non-linearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Non-repeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.02% R.O./oC |
| Temp. shift span | ±0.01% R.O./oC |
| Input resistance | 700±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP60 |
| Material of element |
<500NM Aluminum |
| Cable | Ø5.8*4000mm 6-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- Yellow--Sen+ Blue--Sen- Green--Sig+ White--Sig- |

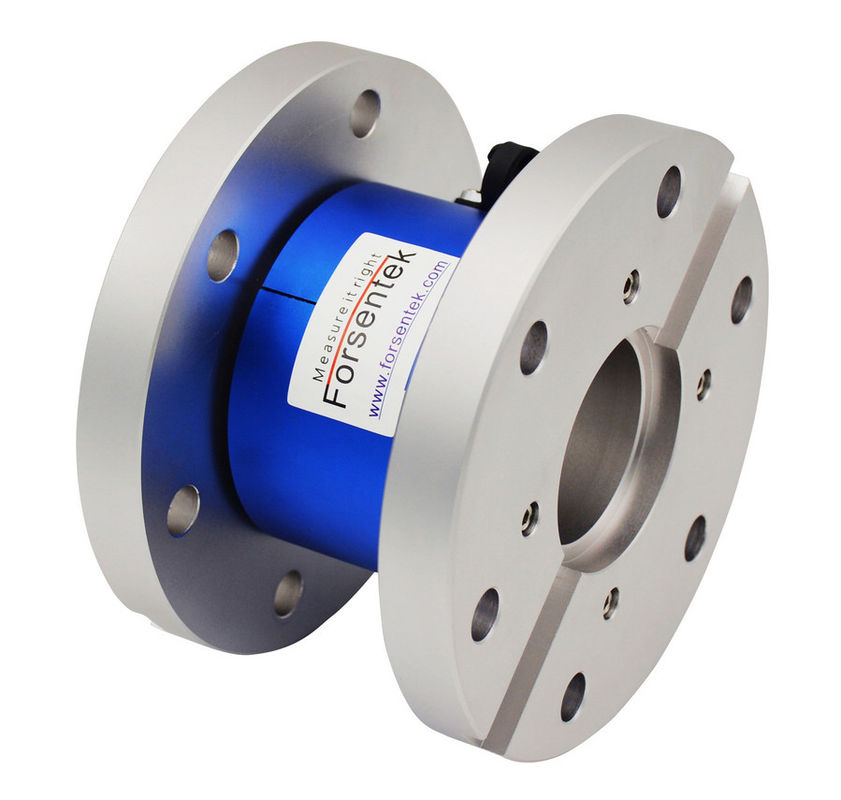

Through hole flange to flange reaction torque sensor FTF
Dimensions(unit in mm)
