Futek LSM300 FSH03976 FUTEK Parallelogram load cell 10 lbs

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Model Number:	FS12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	3~25 working days
Payment Terms:	Western Union, T/T
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Material:	Aluminum	Ranges:	10N 20N 50N 100N 200N 300N 500N
Usage:	Tension Compression Force Measurement

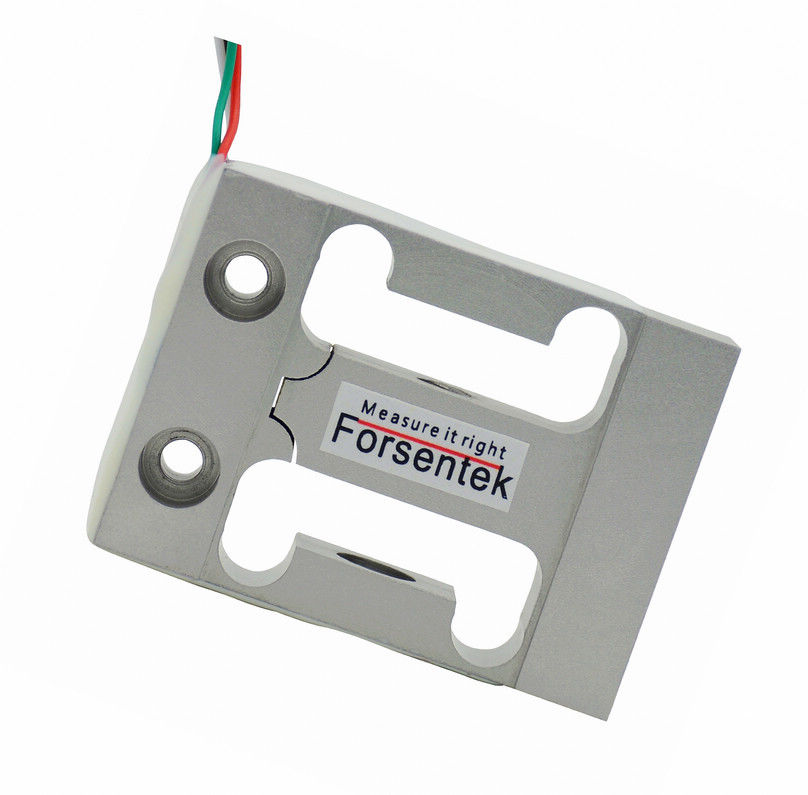

Futek LSM300 FSH03976 FUTEK Parallelogram load cell 10 lbs

The FS12 Parallelogram Load Cell also known as the Belt Buckle Load Cell offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression.Compact load cell FS12 is made of aluminum using metal foil strain gauge technology to deliver maximum 0.05% non-linearity,available force ranges are 10N/20N/50N/100N/200N/300N/500N.Parallelogram Load Cell FS12 is offered as an accurate and cost-effective replacement for FUTEK LSM300 series load cells.

Futek FSH03976

Specifications

Capacity	10N 20N 50N 100N 200N 300N 500N
Rated output	1.0 mV/V
Excitation	3-12V
Zero balance	±0.05mV/V
Nonlinearity	±0.05% R.O.
Hysteresis	±0.05% R.O.
Nonrepeatability	±0.02% R.O.
Creep(5min)	±0.03% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.05% R.O./10^oC
Temperature shift span	±0.05% R.O./10^oC
Input resistance	395±20 ohms
Output resistance	350±5 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP64
Material of element	Aluminum alloy
Cable	AWG28*180mm
Wiring code	Red--E+ Black--E- Green--S+ White--S-

Parallelogram load cell FS12 interchangeable with Futek LSM300 FSH03976

load cell FSH03976

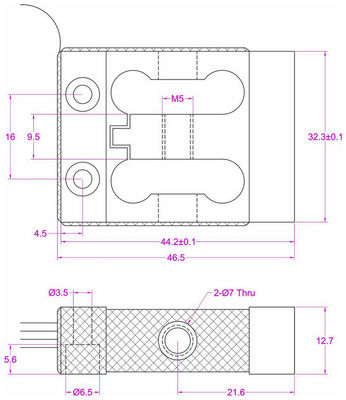

Dimensions(unit in mm)

Parallelogram Load Cell 10 lb
