Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement

Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement

    • Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement
    • Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement
    • Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement
  • Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FY01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 3-12 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 1920pcs/month
    Contact Now
    Detailed Product Description
    Type: Rotary Torque Transducer Capacity: 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
    Output: Analog Usage: Motor Torque Measurement
    Structure: Shaft-to-shaft

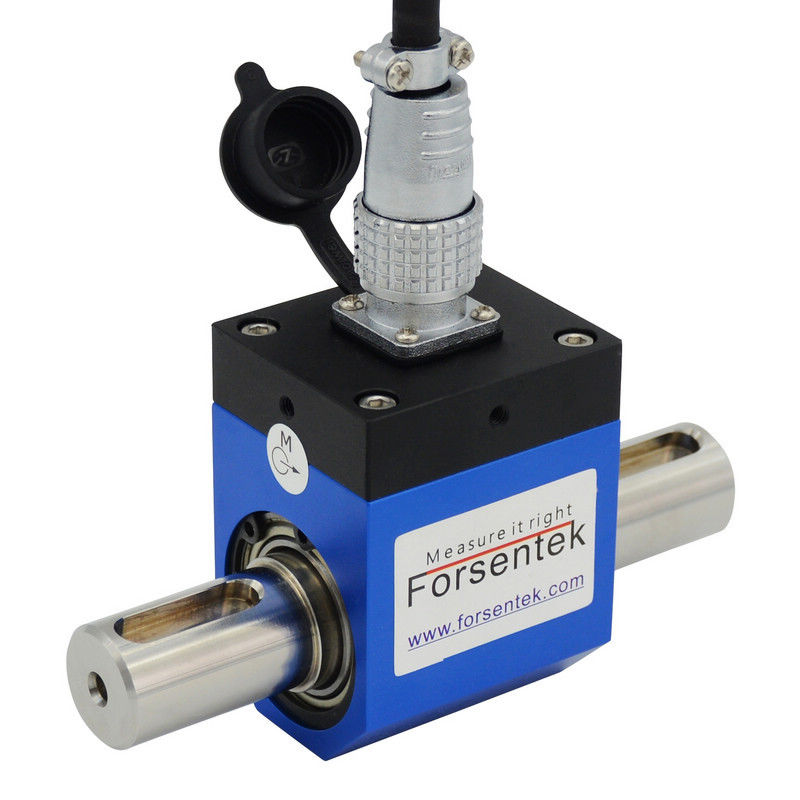

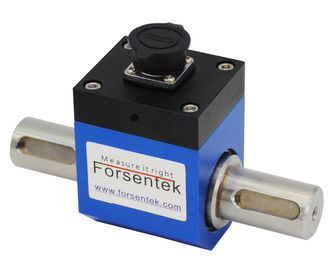

    Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement

    Shaft to Shaft Dynamic Torque Sensor features a shaft to shaft mounting solution with torque measurements ranging from ± 10 Nm to 500 Nm .Dynamic torque sensor FY01 utilizes metal foil strain gauge technology and features slip-ring signal transmission allowing the sensor to operate at up to 4000RPM.Applications for the FY01 series torque transducer include power tool auditing, engine testing for automotive and aerospace, and industrial testing apparatuses.

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque , rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque(which is also known as reaction torque).

    FY01 is a slip ring torque transducer,utilizing strain gauge technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.The measured torque can also be display through torque indicator.
    turbine torque sensor


    Ordering code Measurement Range Torque direction
    FY01-10NM 0-10Nm

    Clockwise

    &

    Counterclockwise

    FY01-20NM 0-20N*m
    FY01-30NM 0-30N-m
    FY01-50NM 0-50Nm
    FY01-100NM 0-100N*m
    FY01-200NM 0-200Nm
    FY01-300NM 0-300N-m
    FY01-500NM 0-500Nm

    Specifications

    Rated capacity 10Nm / 1kg*m / 89 lbf-in
    20N*m / 2kgf*m / 177 lbf*in
    30Nm / 3kgf-m / 266 lbf-in
    50Nm / 5kgf*m / 443 lb-in
    100N*m / 10kgf*m / 885 in*lb
    200Nm / 20kg*m / 1770 lb-in
    300Nm / 30kg*m / 2655 lbf-in
    500N-m / 50kgf-m / 4425 in*lb
    Rated output 1.5 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.2% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.2% R.O. Input resistance 380±30 ohms
    Nonrepeatability ±0.1% R.O. Output resistance 352±5 ohms
    Creep(5min) ±0.1% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP40
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø5*3000mm 4-core shielded
    Wiring code Clockwise@
    Red--Power input+    Black--Power input-
    Green--Signal output+    White--Signal output-



    Shaft to shaft Dynamic torque sensor 50Nm wind turbine torque measurement
    turbine torque measurement

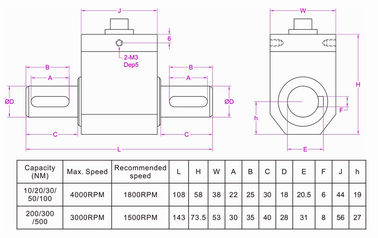

    Dimensions(unit in mm)

    50NM dynamic torque sensor

    Click here to download datasheet
