Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg

China Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg supplier
Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg supplier Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg supplier Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg supplier

Large Image :  Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FSH

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Shockproof carton
Delivery Time: 3-20 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Capacity: 5kg 10kg 20kg 50kg 100kg 200kg 500kg
Output: Analog Output Principle: Strain Gauge Load Cell

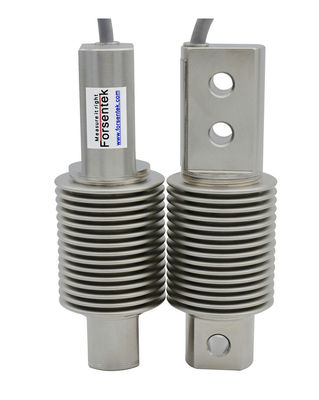

Stainless steel load cell interchangeable with hbm load cell z6fc3 20kg

The precise bending beam load cell is based on the strain gauge technology. It is available in seven different versions with maximum capacities that range from 10kg to 500kg. The load cell with the characteristic bellows has become a worldwide standard. It is widely employed in low-profile platform scales and conveyor scales,packaging machines for dosing and level measurement as well as in weighing modules that, for instance, are used for tank weighing and hopper weighing applications. The metal bellows protects the load cell against the ingress of moisture enables model FSH to function in harsh environments while maintaining its operating specifications,which makes suitable for both indoor and outdoor weight measurement applications.You may find Forsentek load cell FSH interchangeable with HBM load cell Z6FC3,RICE LAKE load cell RL9018SS,RICE LAKE load cell RLHBB,ZEMIC load cell BM11,Tedea-Huntleigh load cell model 355,VPG TRANSDUCERS Model 9102, VPG Revere load cell SHBxR,VPG Celtron model HBB,etc..
hbm Z6FC3 20kg
Specifications

Rated capacity10kg 20kg 30kg 50kg 100kg 200kg 500kg
Rated output2.0±0.002mV/V
Excitation3-15V
Zero balance±2% R.O.
Nonlinearity±0.018% R.O.
Hysteresis±0.018% R.O.
Nonrepeatability±0.017% R.O.
Creep(30min)±0.017% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-30...+70oC
Temperature shift zero±0.02% R.O./10oC
Temperature shift span±0.02% R.O./10oC
Input resistance390±30 ohms
Output resistance356±5 ohms
Insulation resistance>5000M ohms
Ingress protectionIP68
Material of elementStainless steel
CableØ5.3*3000mm 6-core shielded cable
Wiring code

Blue--Exc+ Black--Exc-
Green--Sen+  Grey--Sen-
White--Sig+ Red--Sig-



Stainless steel load cell 500kg 200kg 100kg 50kg 30kg 20kg 10kg

hbm load cell Z6FC3 20kg
A load cell sensor is a transducer that converts mechanical force into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
Dimensions(Unit in "mm")

hbm Z6FC3

HBM Z6FC3 pdf
