| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FMZC |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-25 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 50000pcs/month |
| Type: | Micro Load Cell | Capacity: | 2kg 3kg 5kg 10kg |
|---|---|---|---|
| Structure: | Single Ended Beam Type | Usage: | Weight Measurement Transducer |
| Output: | Analog Sensor |

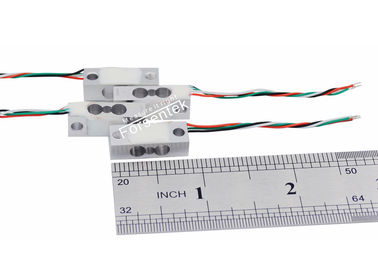

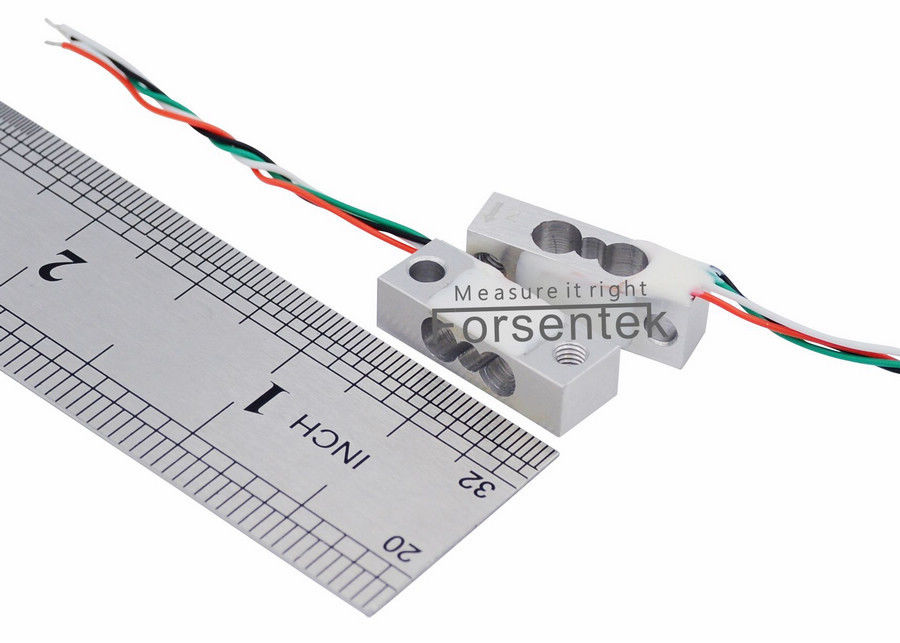

Micro load cell 2kg miniature load sensor 20N mini weight sensor 5 lb
Micro load cell FMZC is a weight transducer that converts mechanical load into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.FMZC utilizes strain gage technology to deliver maximum 0.1% non-linearity of the rated output,1000 ohms strain gauges are used to minimize the power consumption which makes it suitable for weighing electronics where durability matters.Small size load cell sensor FMZC offers 2kg / 3kg / 5kg / 10kg four rated capacities to choose from.With 22mm total length,mini load cell FMZC makes weight measurement for applications with limited mounting space possible. Small size load sensor FMZC weighs only 2.2g thanks to its compact size and aluminum construction which makes it applicable for portable weighing devices. Miniature size, high accuracy, miniature size, light weight, low cost, you may find load cell sensor FMZC suitable for weighing applications such as coffe machine weight measurement, vending machine weight monitoring, warehouse weight management, arduino based weighing instruments, packaging machines, feeding machines and so on. Besides the standard specifications, Forsentek is also capable of and willing to provide custom made solutions according to clients' specific requirements.
Specifications
| Rated capacity |
2kg / 20N / 4.4lb 3kg / 30N / 6.6lb 5kg / 50N / 11lb 10kg / 100N / 22lb |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of R.O. |
| Hysteresis | ±0.1% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(2min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.05% of R.O./oC |
| Temperature shift span | ±0.05% of R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | 32AWG*180mm(Longer cable available) |
| Wiring code |
Red--Excitation+ Black--Excitation- |
Micro load cell sensor 2kg 3kg 5kg 10kg weight measurement transducer

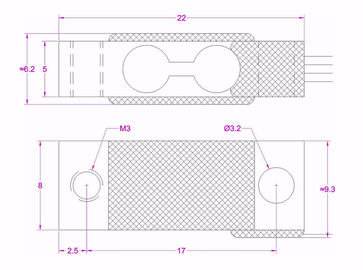

Dimensions(unit in milimeter)
