| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FSSM |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 5000pcs/month |
| Material: | Stainless Steel | Capacity: | 10N 20N 50N 100N 200N 300N 500N 1000N |
|---|---|---|---|
| Output: | Analog Output | Principle: | Strain Gauge Force Sensor |
| Force Measure Direction: | Tension Compression Force Measurement |

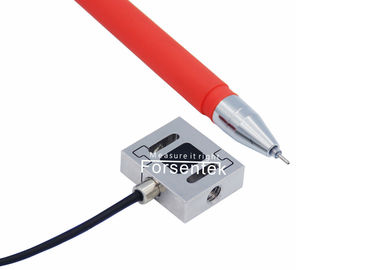

Miniature force transducer 100N tension and compression force sensor 50N
Miniature force transducer FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of full scale,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.Small size tension load cell FSSM is widely used for force gauges,tension meters,switch insertion force measurement,keyboard testing,spring testing,syringe testing,touchpad testing,cylinder thrust measurement and so on.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.
Specifications
| Capacity | 10N/1kgf/2.2lbf 20N/2kgf/4.4lbf 50N/5kgf/11.2lbf 100N/10kgf/22.4lbf 200N/20kgf/45lbf 300N/30kgf/67lbf 500N/50kgf/112lbf 1kN/100kgf/224lbf |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.1% R.O. |
| Hysteresis | ±0.1% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø2*4000mm |
| Wiring code | Compression@ Red--E+ Black--E- Green--S+ White--S- |

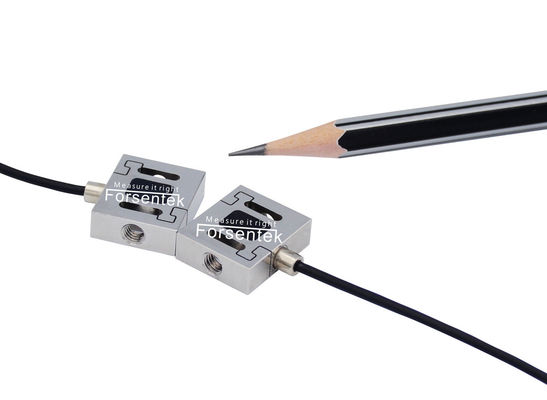

Miniature force transducer 100N tension and compression force sensor 50N
Dimensions(in milimeter)
