Custom torque sensor for Mixer agitator torque control mixing torque monitoring

China Custom torque sensor for Mixer agitator torque control mixing torque monitoring supplier
Custom torque sensor for Mixer agitator torque control mixing torque monitoring supplier Custom torque sensor for Mixer agitator torque control mixing torque monitoring supplier Custom torque sensor for Mixer agitator torque control mixing torque monitoring supplier

Large Image :  Custom torque sensor for Mixer agitator torque control mixing torque monitoring

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FTHC

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Shockproof carton
Delivery Time: 3-20 working days
Payment Terms: Western Union, MoneyGram, T/T,Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel Capacity: 5N*M 10N*M 20N*M 30N*M 40N*M
Type: Reaction Torque Sensor Principle: Strain Gauge Torque Sensor
Application: Robot Arm Torque Measurement

Custom torque sensor for Mixer agitator torque control mixing torque monitoring
Mixer agitator torque measurement sensor FTHC is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated output,model FTHC offers 5NM / 10NM / 20NM / 30NM / 40NM measuring ranges to choose from.Low profile design,through hole structure,flange to flange mounting,working with servo or stepper motor,joint torque sensor FTHC can help make robot joint motion control more smoother,you may also find model FTHC applicable for agitator mixer torque monitoring.Besides the standard specifications,custom made service according to client's specific requrements is also available at Forsentek.

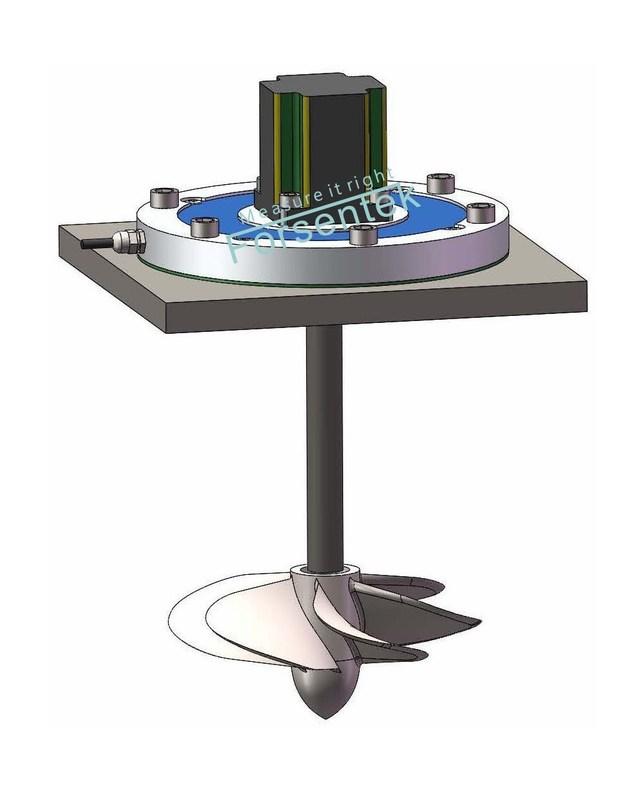

mixing torque monitoring
Specifications

Rated capacity 5NM 10NM 20NM 30NM 40NM(Customizable)
Rated output 1.0 mV/V
Excitation 3-12V
Zero balance ±3% F.S.
Non-linearity ±0.3% F.S.
Hysteresis ±0.3% F.S.
Non-repeatability ±0.1% F.S.
Creep(10min) ±0.1% F.S.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% F.S./oC
Temp. shift span ±0.01% F.S./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Stainless steel
Cable Ø3.2*3000mm 4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-

Green--Sig+ White--Sig-



Custom torque sensor for Mixer agitator torque control mixing torque monitoring

mixer agitator torque control

Dimensions(unit in milimeter,customizable)

mixer torque control

robot torque sensor pdf
