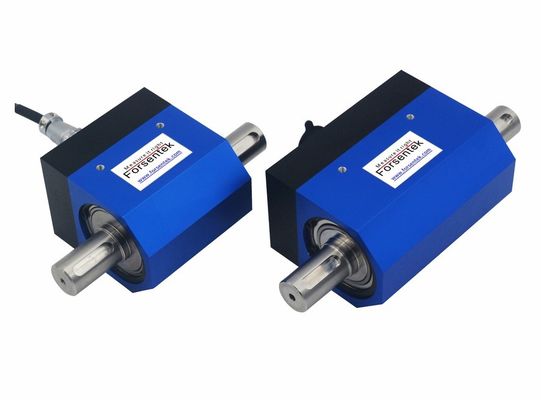

Torque speed sensor with 0-5V output motor test sensor with 4-20mA output

China Torque speed sensor with 0-5V output motor test sensor with 4-20mA output supplier
Torque speed sensor with 0-5V output motor test sensor with 4-20mA output supplier Torque speed sensor with 0-5V output motor test sensor with 4-20mA output supplier Torque speed sensor with 0-5V output motor test sensor with 4-20mA output supplier

Large Image :  Torque speed sensor with 0-5V output motor test sensor with 4-20mA output

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FYTD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Quote by email
Packaging Details: Shockproof packing
Delivery Time: 3-15 working days
Payment Terms: Western Union, T/T,Paypal, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Type: Contactless Torque Transducer Capacity: 5NM 10NM 20NM 30NM 50NM 100NM
Output: ±5V/±10V/4-20mA Application: Rotating Torque Speed Measurement

Torque speed sensor with 0-5V output motor test sensor with 4-20mA output

Torque speed sensor FYTD is a rotating type transducer that converts a torsional mechanial input into an electrical output signal,torque sensor FYTD measures both torque and rotating speed with ±5V /±10V / 4-20mA output.Contactless rotary torque transducer FYTD offers 5NM / 10NM / 20NM / 30NM / 50NM / 100NM six measuring ranges with maximum 0.2% non-linearity of the full capacity to choose from,rotating speed measurement goes up to 6000RPM,and it is more durable compared to slip-ring type torque transducers thanks to non-contact transformer technology. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement cases with low rotating speed. Typical applications for FYTD is such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,etc..

motor_test_sensor
Specifications

Capacity 5NM 10NM 20NM 30NM 50NM 100NM
Rated output ±5V / ±10V / 4-20mA
Excitation 24V DC (or 12V DC)
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temp. -10...+60oC
Ingress protection IP50
Material of element Stainless steel
Material of housing Aluminum
Cable Ø6*3000mm(Mating connector provided)



Torque speed sensor with 0-5V output motor test sensor with 4-20mA output

torque_speed_sensor

Dimensions:

torque_sensor_with_0-5V_output
