Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

    • Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in
    • Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in
    • Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in
  • Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: /
    Model Number: FYTE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 3-15 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Type: Contactless Torque Transducer Capacity: 5NM 10NM 20NM 30NM 50NM 100NM
    Output: ±5V/±10V/4-20mA Application: Rotating Torque Measurement

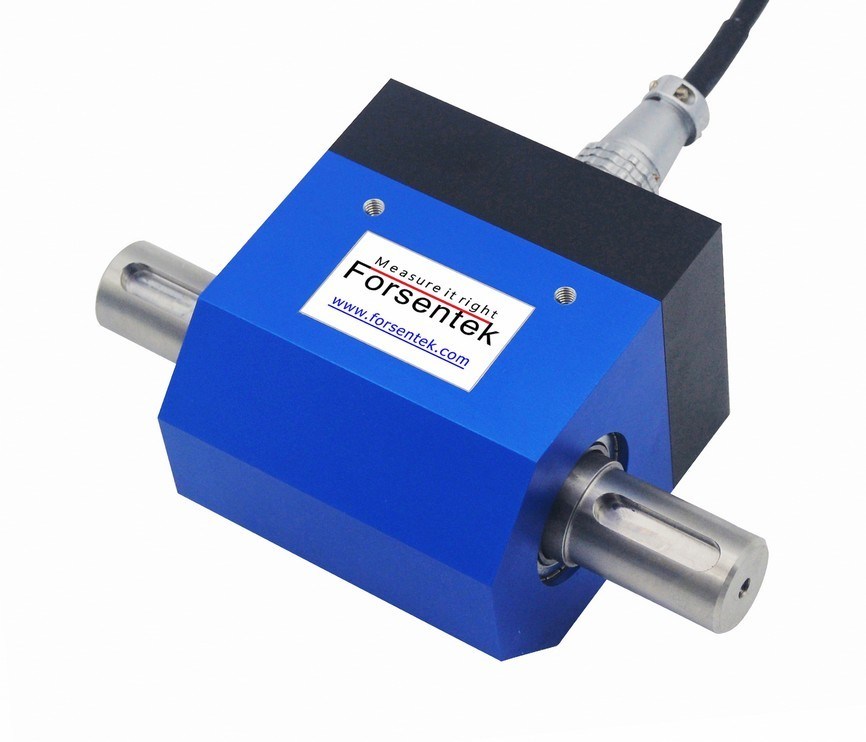

    Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

    Contactless shaft type rotary torque sensor FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out.Non contact rotary torque transducer FYTE offers 1NM / 2NM / 3NM / 5NM / 10NM / 20NM / 30NM / 50NM / 100NM / 200NM / 300NM / 500NM twelve rated capacities to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

    rotary torque sensor 50lbf-in 100 lb-in 200lb-in
    Specifications

    Capacity

    1NM / 8.8 lbf*in / 0.74 lbf*ft

    2NM / 17.7 lb-in / 1.5 lb*ft

    3NM / 36.5 lbf-in / 2.2 lb-ft

    5NM / 44lbf*in / 3.7lb-ft

    10NM / 88 lb-in / 7.4 lbf*ft

    20NM / 177 lbf-in / 15 lb*ft

    30NM / 265lbf-in / 22 lb-ft

    50NM / 442 lb*in / 37 lbf-ft

    100NM / 885 lb-in / 74lbf-ft

    200NM / 1770 lbf*in / 147 lbf*ft

    300NM / 2655 lbf-in / 221 lb*ft

    500NM / 4425 lbf*in / 368 lb-ft

    Rated output ±5V / ±10V / 4-20mA
    Excitation 24V DC (or 12V DC)
    Zero balance ±2% R.O.
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.2% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Operating temp. -10...+60oC
    Ingress protection IP50
    Material of element Stainless steel
    Material of housing Aluminum
    Cable Ø6*3000mm(Mating connector provided)



    Contactless shaft type rotary torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

    rotary torque sensor 500 lbf-in 1000lbf*in

    Dimensions

    dynamic torque sensor 50lbf-in 100 lb-in 200lb-in 500 lbf-in 1000lbf*in

    contactless torque sensor pdf
