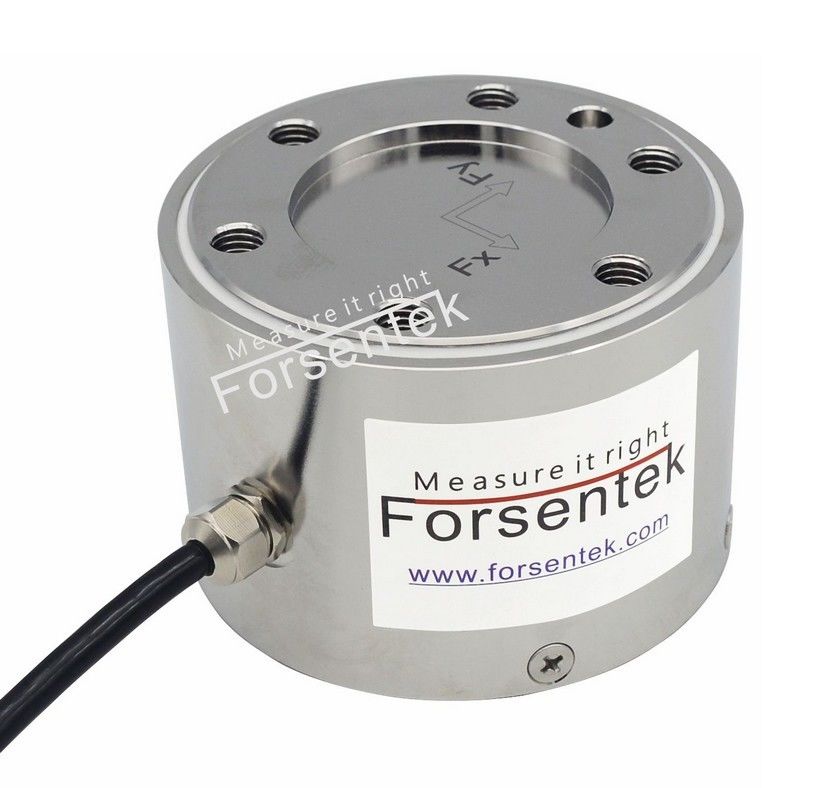

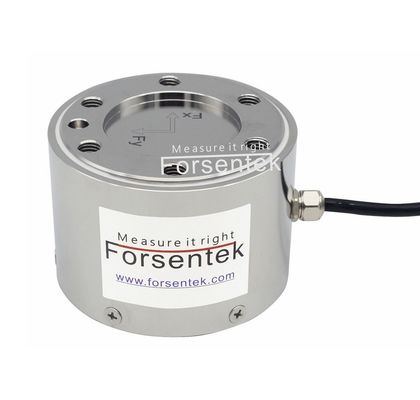

Flange type Multi-axis load cell 1 ton 2ton 5 ton 3 axis force sensor
Multi-axis load cell MAE is made of stainless steel based on strain gauge technology,flange to flange design for easy mounting.3-axis load cell MAE offers 10kN / 25kN / 50kN / 100kN measuring ranges to choose from,independent wheatstone bridge delivers mV/V output for each axis.MAE measures three dimensional force without mathematical manipulation.You may find multi-axis load cell MAE applicable for robotics,automotive crash testing,industrial test benches,grinding force control,actuator operating force measurement,etc.
Dimensions(in milimeter)
| Multi axis load cell MAE Ordering code | ||
| Part No. | Capacity | |
| Fx=Fy | Fz | |
| MAE-10-10-25 | 10kN | 25kN |
| MAE-25-25-50 | 25kN | 50kN |
| MAE-50-50-100 | 50kN | 100kN |
Specifications
| Rated Capacity |
Fx/Fy-10kN 25KN 50KN Fz-25kN 50KN 100KN |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Non-repeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift on zero | ±0.03% R.O./oC |
| Temperature shift on span | ±0.03% R.O./oC |
| Input resistance | 700±50 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø6*3000mm 8-core shielded cable |
| Wiring code |
Excitation Blue--Exc+ Black--Exc- X-axis Grey--Sig+ Green--Sig- Y-axis Brown--Sig+ Yellow--Sig- Z-axis White--Sig+ Red--Sig- |
