| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FSRT |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-25 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 5000pcs/month |
| Material: | Stainless Steel | Capacity: | 500kg 1000kg 2000kg 3000kg 4000kg 5000kg 6000kg 7500kg |
|---|---|---|---|
| Output: | Analog Output | Principle: | Strain Gauge Load Cell |
| Force Measure Direction: | Tension And Compression |

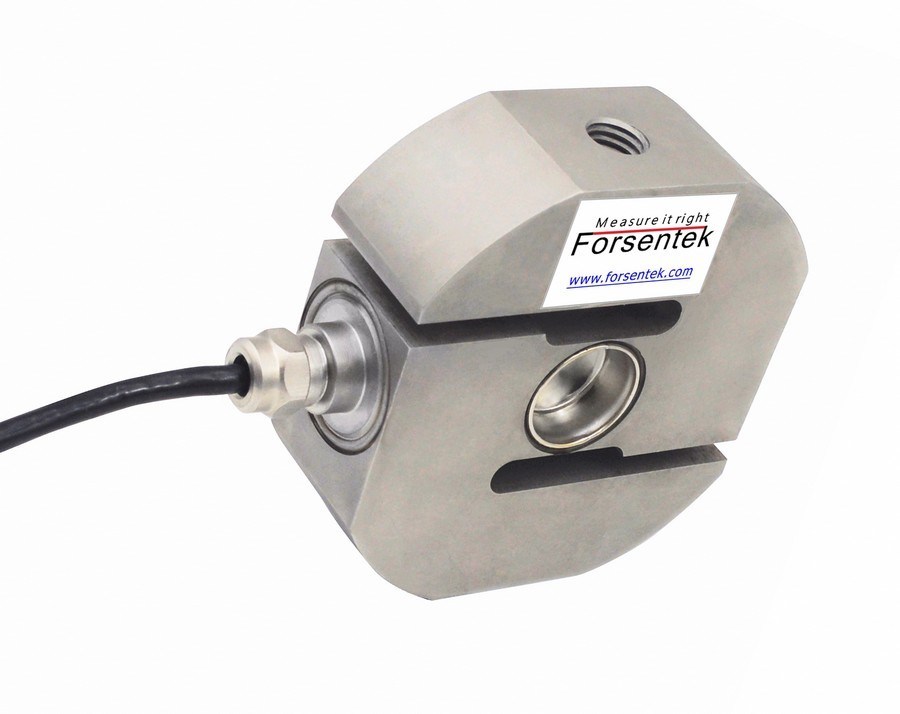

IP68 stainless steel S type load cell 1klb 2klb 4k lbs 6k lbs 10klbf 15klbs
IP68 stainless steel s type load cell FSRT is made based on strain gauge technology to deliver 2.0mV/V output from the built-in wheatstone bridge,S-beam load cell FSRT is intended for both tension and compression force measurement with 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-60kN / 0-75kN measuring ranges to choose from.The internal threads located on both ends can be used to install swivel heads or load buttons for different purposes.S-type load cell FSRT is made of stainless steel and IP68 hermetically sealed which makes it applicable weighing applications with harsh working conditions.Temperature compensation process ensures stable performance throughout the working temperature range.Typical applications for this type of force transducer are for example suspended tank and vessel weighing, hopper scales, concrete batching equipment, auto-filling machines, conveyor belt scales, hanging scales, material testing machines, and so on.
Dimensions(in milimeter)
Specifications
| Capacity |
500kg 1000kg 2000kg 3000kg 4000kg 5000kg 6000kg 7500kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.017% R.O. |
| Hysteresis | ±0.017% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.017% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -35...+65oC |
| Temperature shift zero | ±0.02% R.O./10oC |
| Temperature shift span | ±0.02% R.O./10oC |
| Input resistance | 350±5 ohms |
| Output resistance | 350±3 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP68 |
| Material of element | Stainless steel |
| Cable |
500kg---Ø5*3000mm 1000kg~7500kg---Ø5*6000mm 4-core shielded cable |
| Wiring code | Red--Exc+ Black--Exc- Green---Sig+ White--Sig- |
