Place of Origin: | China |
Brand Name: | Forsentek |
Model Number: | FYTG |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | Shockproof packing |
Delivery Time: | 3-15 working days |
Payment Terms: | Western Union, T/T,Paypal, MoneyGram |
Supply Ability: | 1860pcs/month |
Type: | Contactless Torque Transducer | Capacity: | 0-2000NM |
---|---|---|---|
Output: | ±5V/±10V/4-20mA | Application: | Motor Torque Speed Measurement |
Structure: | Shaft-to-shaft |

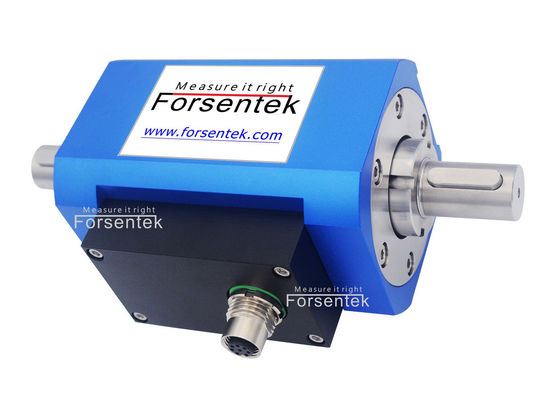

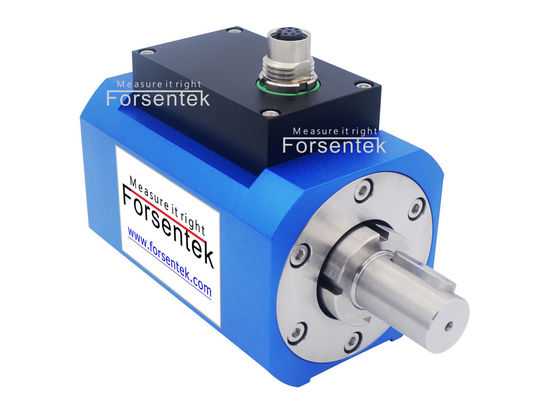

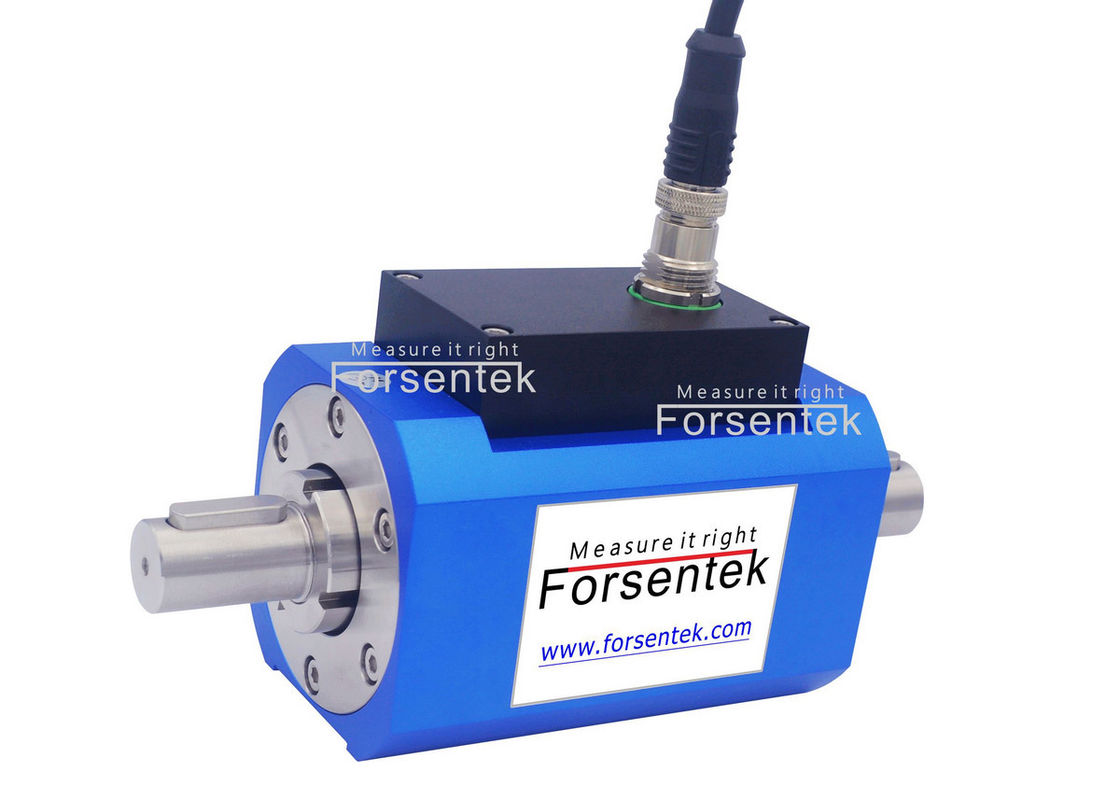

Shaft rotary torque transmitter 0-5V 0-10V 4-20mA for dynamic torque measurement
Non-contact shaft type rotary torque transmitter FYTG is intended for both torque and speed measurement,there is no friction between rotating shaft and signal collect device thanks to contactless rotary transformer technology,which makes it much more durable compared to slip-ring type torque transducers. Contactless rotary torque sensor FYTG offers 0-1NM / 0-2NM / 0-3N*M / 0-5N*M / 0-10N-M / 0-20N-M / 0-30N*M / 0-50N*M / 0-100N*M / 0-200N*M / 0-300N*M / 0-500N*M / 0-1000NM / 0-1500NM / 0-2000NM fifteen torque measuring ranges to choose from, rotating speed goes up to 12000RPM for 0-100Nm,10000RPM for 200-500NM, 6000RPM for 1k-2kNM. Both torque and speed channel delivers 0-5V , 0-10V or 4-20mA output which is proportional to the applied torque and rotating speed. Dynamic torque meter FYTG can be mounted in horizontal, vertical and other directions, keyed shafts on both sides of the sensor can be used to connect with motor and load through couplings, the sensor shaft rotates while the housing remains still during measurement. You may find rotating torque sensor FYTG suitable for applications such as torque measurement of servo motors, impellers, pumps, agitators and so on.

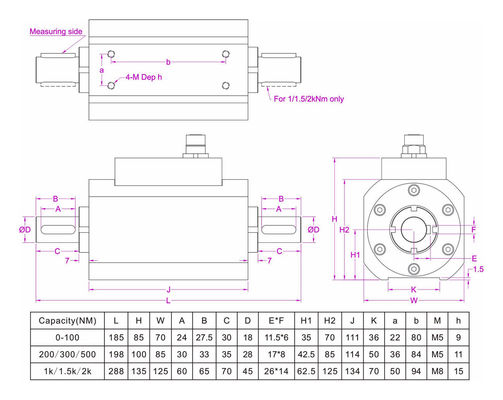

Dimensions
Specifications
Capacity | 1N*M / 8.8 lbf-in / 0.74 lbf-ft 2NM / 17.7 lb*in / 1.5 lb-ft 3N-M / 36.5 lbf*in / 2.2 lb*ft 5NM / 44lbf-in / 3.7lb*ft 10N*m / 88 lb*in / 7.4 lbf-ft 20NM / 177 lbf*in / 15 lb-ft 30NM / 265lbf*in / 22 lb*ft 50N*M / 442 lb-in / 37 lbf*ft 100NM / 885 lb*in / 74lbf*ft 200N-M / 1770 lbf-in / 147 lbf-ft 300NM / 2655 lbf*in / 221 lb-ft 500N-m / 4425lbf-in / 368 lb*ft 1000N-M / 8850 lbf-in / 737 lbf-ft 1500NM / 13276 lbf*in / 1100lb-ft 2000N-m / 17700lbf-in / 1475 lb*ft |
Rated output | 0-5V / 0-10V / 4-20mA |
Excitation | 24V DC (or 12V DC) |
Nonlinearity | ±0.2% R.O. |
Hysteresis | ±0.2% R.O. |
Nonrepeatability | ±0.2% R.O. |
Creep(10min) | ±0.1% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Operating temp. | -10...+60oC |
Ingress protection | IP40 |
Material of element | Stainless steel |
Material of housing | Aluminum |
Cable | Ø6*3000mm(Mating connector included) |
