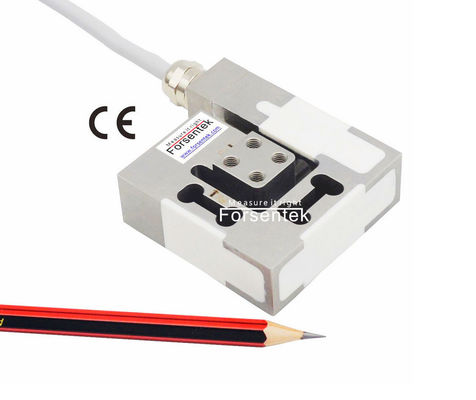

Multi-Axis Load Cell 225lb 112lb 45lb 20lb 10lb 5lb 3 Axis Force Sensor
Tri-axial Load Cell F3G is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction with 0-225lbf / 0-112lbf / 0-67lbf / 0-45lbf / 0-22lbf / 0-11lbf / 0-6lbf / 0-4lbf eight measuring ranges to choose from.Very low profile design with total 26mm height makes F3G suitable for 3-axis force measurement where mounting space is limited.Typical applications for this 3-Axis Force Sensor F3G are for example force exertion control in robotics, force simulators, industrial test benches, grinding force control, actuator operating force measurement and so on.Multi-axis sensor F3G can also be modified or customized as per request to meet requirements of different applications.
Specifications
| Rated capacity |
20N / 2kg / 4.5lb 30N / 3kg / 6.7lb 50N / 5kg / 11.2lb 100N / 10kg / 22.5lb 200N / 20kg / 45lb 300N / 30kg / 67.5lb 500N / 50kg / 112lb 1000N / 100kg / 225lb |
||
| Rated output | 1.0 mV/V | Compensated temperature | 0...+40oC |
| Excitation | 3-15V | Operating temperature | -10...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.03% R.O./oC |
| Nonlinearity | ±0.2% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.2% R.O. | Input resistance | 385±50 ohms |
| Nonrepeatability | ±0.1% R.O. | Output resistance |
350±10 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP62 |
| Ultimate overload | 200% F.S. | Material of element | Aluminum/Stainless |
| Cable | Ø6*3000mm 12-core shielded | ||
| Wiring |
4-wire connection for each axis |
||
3-axis force load cell F3G consists of 3 wheatstone full bridges,one in each channel to deliver mV/V output proportional to the applied force,the output range of F3G is normally within -15mV...+15mV, an external 3-channel load cell amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA for easy signal processing.Taking 3-component load cell F3G-200N and LC3A(-10-10V)-24V for example,the force-voltage relationship will be 0-200N load in Fx+/Fy+/Fz+ direction VS 0-10V output, 0-200N in Fx-/Fy-/Fz- direction VS 0-(-10V) output.The signal conditioner also supports other signal output like 0-5-10V, -5-5V, 4-12-20mA an so on.
