|Type:||Micro Weight Sensor||Capacity:||2kg 3kg 5kg 10kg|
|Output:||Analog Transducer||Usage:||Load Measurement|
|Length:||22mm||Structure:||Single Point Beam Type Load Cell|
Miniature Weight Sensor 10kg 5kg 3kg 2kg Smallest Beam Load Cell Transducer

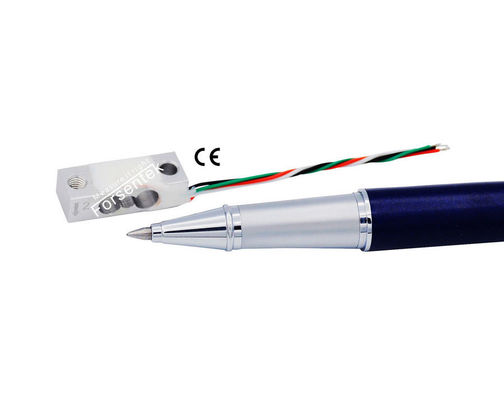

Subminiature Beam Load Cell FMZC is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Miniature Load Sensor FMZC offers 0-2kg / 0-3kg / 0-5kg / 0-10kg four rated measuring ranges to choose from,high accuracy with maximum 0.1% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to commonly used 350 ohms gauges. The compact size (L*W*H=22*8*5mm) and aluminum material makes loadcell FMZC weighs only about 2.2 grams which makes it suitable for weight measuring applications where total mass and mounting space matters. Micro load cell FMZC offers a perfect mixture of small size,high accuracy and low cost,which makes mini weight sensor FMZC suitable for weight monitoring in consumer electronics.You may find weight transducer FMZC applicable for home appliances, force simulators, process control, robotics, automotive and so on.Forsentek is also capable of and willing to provide custom made service if you cannot find suitable weight/load/force measurement sensors from the standard product portfolio.
2kg / 20N / 4.4lb
3kg / 30N / 6.6lb
5kg / 50N / 11lb
10kg / 100N / 22lb
|Rated output||1.0 mV/V||Compensated temperature||-10...+40oC|
|Zero balance||±0.1mV/V||Temperature shift zero||±0.05% R.O./oC|
|Nonlinearity||±0.1% R.O.||Temperature shift span||±0.05% R.O./oC|
|Hysteresis||±0.1% R.O.||Input resistance||1020±100 ohms|
|Nonrepeatability||±0.05% R.O.||Output resistance||1020±20 ohms|
|Creep(2min)||±0.05% R.O.||Insulation resistance||>2000Mohms|
|Safe overload||120% F.S.||Ingress protection||IP62|
|Ultimate overload||200% F.S.||Material of element||Aluminum|
|Cable||AWG32*180mm(Longer cable upon request)|
Red--Power input+ Black--Power input-
Green--Signal output+ White--Signal output-
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured forming a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of micro weight sensor FMZC is normally around 1mV/V.
Power supply of miniature load cell FMZC is normally within 3-10V.
Load / Capacity is within 0-1.
So the output range of small load sensor FMZC is normally within -10mV...+10mV.
Example one: Smallest Bema Type Load Cell FMZC-2kg with 1.0mV/V rated output powered by 10V DC,the output range is -10mV...+10mV.
Example two: Micro load cell FMZC-10kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is -3.3mV...+3.3mV.
