| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FFR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2165pcs/month |
| Type: | Flange Mounted Load Cell | Capacity: | 10kN 5kN 2kN 1kN 500N 200N 100N |
|---|---|---|---|
| Usage: | Compression Force Measurement | Output: | Analog Sensor |
| Connection: | Flange-to-Flange |

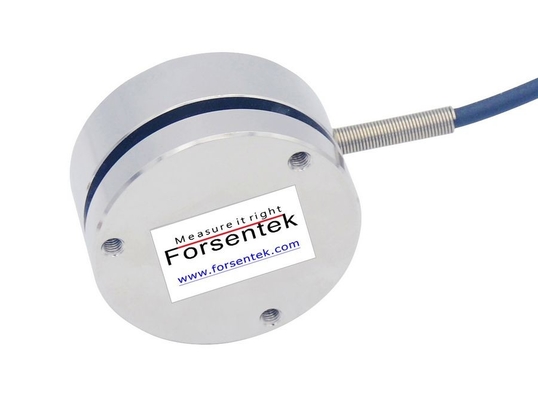

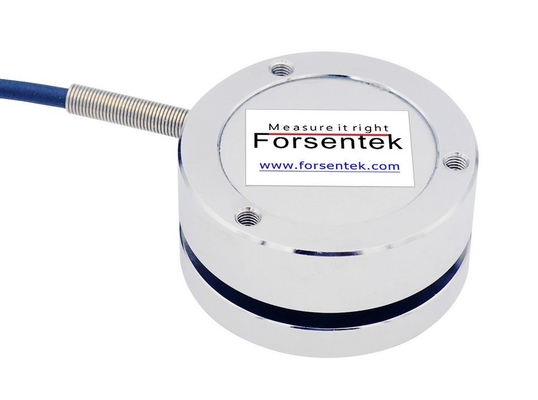

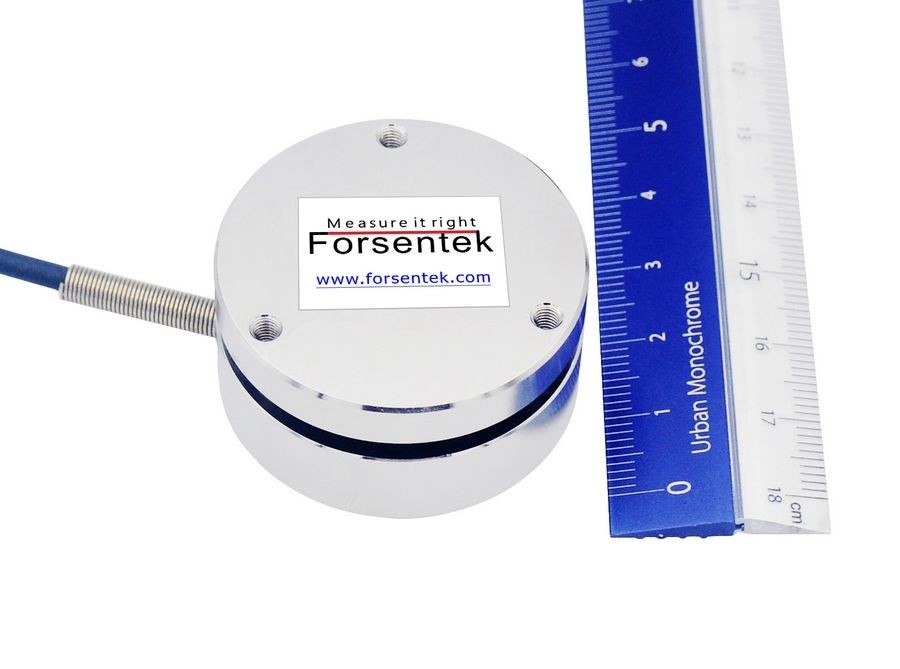

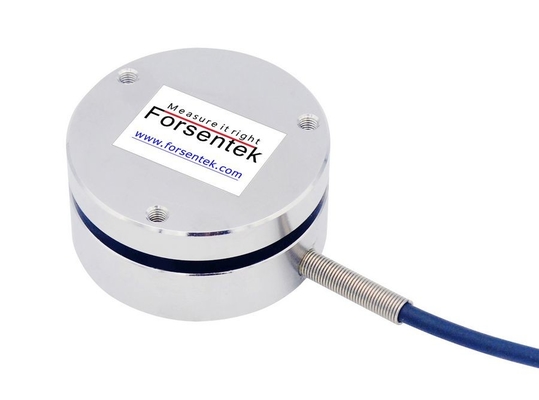

Flanged Load Cell 10kN 5kN 2kN 1kN 500N 200N 100N Compression Sensor
Flange Load Cell FFR is made of stainless steel utilizing strain gauge technology to deliver mV/V output from the full wheatstone bridge. Flange Type Force Sensor FFR offers 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN / 0-5kN / 0-10kN seven rated measuring ranges to choose from, Column type force transducer FFR is designed for compression force measurement with flange-to-flange configuration. Flange Mounted Force Sensor FFR is suitable for applications such as automated control process, cylinder thrust measurement, assembly force monitoring, bearing press fit measurement, welding clamping force control, hand press force verification, fixture clamp force test and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide load cell custom design service to meet requirements of different applications.
Specifications
| Rated capacity |
10kg / 20kg / 50kg / 100kg / 200kg / 500kg / 1000kg 100N / 200N / 500N / 1kN / 2kN / 5kN / 10kN |
||
| Rated output | 1.5 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.3% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.3% R.O. | Input resistance | 750±100 ohms |
| Nonrepeatability | ±0.1% R.O. | Output resistance | 700±10 ohms |
| Creep(5min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core shielded cable | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flange Mounted Load Cell FFR is normally around 1.5mV/V.
Power supply of Flange Type Load cell FFR is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Sensor FFR is normally within 0…+22.5mV.
Example one: Flanged Force Transducer FFR-10kN with 1.5mV/V sensitivity powered by 5V DC,the output range is 0mV...+7.5mV.
Example two: Flange Type Force Sensor FFR-20kN with 1.5mV/V rated output powered by 10V DC,the output range is 0mV...+15mV.

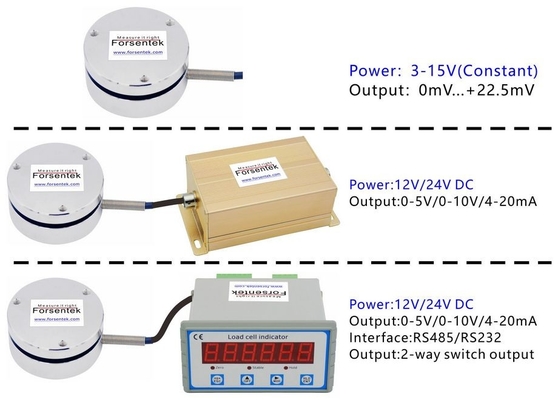

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Flange Type Compression Load Cell FFR-5kN working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-5000N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 500N compression load, 2V output corresponds to 1000N compression load, and so on.
Example two: Miniature Column Type Force Sensor FFR-2kN working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-2000N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 200N compression load, 12mA output corresponds to 1kN compression load, and so on.
Flanged Load Cell 10kN 5kN 2kN 1kN 500N 200N 100N Compression Sensor
| Ordering code | Measurement Range | Force direction |
| FFR-10kg | 0-100N / 0-10kgf | Compression |
| FFR-20kg | 0-200N / 0-20kgf | |
| FFR-50kg | 0-500N / 0-50kgf | |
| FFR-100kg | 0-1kN / 0-100kgf | |
| FFR-200kg | 0-2kN / 0-200kgf | |
| FFR-500kg | 0-5kN / 0-500kgf | |
| FFR-1000kg | 0-10kN / 0-1000kgf |
