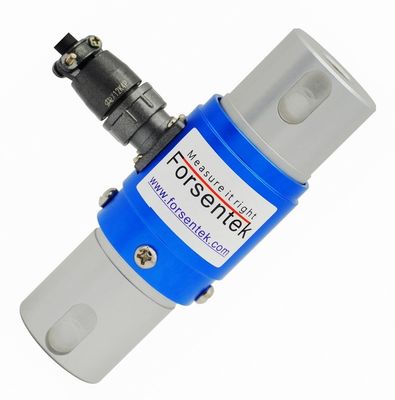

Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor

Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor

    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
    • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor
  • Shaft to shaft reaction torque transducer Shaft type Static Torque Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FTB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 1-2 weeks
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Capacity: 0-100N-m(Selectable) Type: Reaction Type Torque Transducer
    Connection: Shaft-to-Shaft

    Shaft to shaft reaction torque transducerr torque measurement sensor

    reaction torque transducer

    load cell pdf


    Features

    • Aluminum or alloy steel construction
    • Strain gauge technology,analog output
    • Shaft to shaft design,easy to insall
    • Non-rotating torque measurement

    reaction torque sensor
    Dimensions
    torque transducer FTB

    torque measurement sensor

    Specifications

    Rated capacity

    0.5N-m / 5kgf*cm / 4.4lbf-in

    1N-m / 10kgf*cm / 8.85lb*in

    2N-m / 20kgf*cm / 17.7lbf*in

    3N-m / 30kgf*cm / 26.6in-lb

    5N-m / 50kgf*cm / 44in*lb

    10N-m / 1kgf*m / 88.5in*lbf

    20N-m / 2kgf*m / 177in-lbf

    30N-m / 3kgf*m / 266lb-in

    50N-m / 5kgf*m / 443lbf*in

    100N-m / 10kgf*m / 885lbf-in

    (Customizable)

    Rated output 1.5mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% R.O./oC
    Temp. shift span ±0.02% R.O./oC
    Input resistance 350(700) ohms
    Output resistance 350(700) ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Aluminum/Alloy steel
    Cable Ø5*3000mm 4-core shielded
    Wiring code

    Red--Power+   Black--Power-

    Green--Output+   White--Output-


    inline torque sensor
    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque transducer is normally devided into two types:Static torque sensor and Dynamic torque sensor.FTA is a static type sensor which is designed to measure non-rotating torque which is also known as reaction torque.The standard output of FTA is normally between -20~20mV which is proportional to applied torque,signal conditioner can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA output for easy data acquisition.

    torque measurement transducer

    dual shaft torque sensor
