| Material: | Aluminum Alloy | Capacity: | 500N 1KN 1.5KN 2KN |
|---|---|---|---|
| Output: | Analog Output | Principle: | Strain Gauge Load Cell |
| Type: | Compression Type Load Cell |
Compression load cell compression force measurement
Features
Dimensions
Specifications
| Rated capacity | 500N 1KN 1.5KN 2KN |
| Rated output | 1.5mV/V,0-5V,0-10V,4-20mA |
| Excitation | 5-15V |
| Zero balance | ±5% of R.O. |
| Nonlinearity | ±0.2% of R.O. |
| Hysteresis | ±0.2% of R.O. |
| Nonrepeatability | ±0.1% of R.O. |
| Creep(30min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./10oC |
| Temperature shift span | ±0.05% R.O./10oC |
| Input resistance | 750±30 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Aluminum alloy |
| Cable | Ø4*2000mm(Longer cable available) |
| Wiring code |
Red--Exc+ Black--Exc- |
A compression load cell is a compression type transducer that converts compressive force acting on it into electronic signal which is proportional to the force being applied.The measured force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.

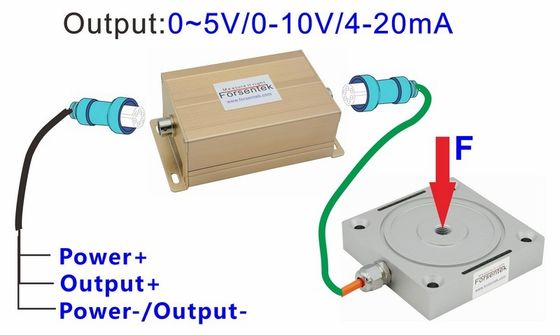

A strain gauge load cell normally outputs millivolt signal ranging 0-20mV(-20~20mV for bidirectional sensor),and signal amplification may be required for most applications,a load cell signal transmitter can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.
Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
