    Type: S Beam Force Sensor Capacity: 2KN 3KN 5KN 10KN 20KN 30KN 50KN 100KN
    Output: Analog Transducer Principle: Strain Gauge Load Cell
    Force Direction: Tension And Compression

    S beam load cell 100KN 50KN 30KN 20KN 10KN 5KN S-type load cell sensor

    s beam load cell 100KN 50KN 30KN 20KN 10KN 5KN

    load cell datasheet
    Features

    • S beam structure,alloy steel construction
    • Strain gauge technology,analog output,high accuracy
    • Tension compression force measurement
    • Widely used for testing machines,press force test,hanging scales,auto equipment,production line,press machine.etc.

    Dimensions(unit in "mm“)

    s beam load cell FSSA
    Specifications

    Rated capacity  2KN 3KN 5KN 10KN 20KN 30KN 50KN 100KN
    Rated output  2.0mV/V
    Excitation  5-15V
    Zero balance  ±2% of R.O.
    Non-linearity  ±0.05% of R.O.
    Hysteresis  ±0.05% of R.O.
    Non-repeatability  ±0.03% of R.O.
    Creep(30min)  ±0.05% of R.O.
    Safe overload  150% of F.S.
    Ultimate overload  200% of F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.05% R.O./10oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  350±30 ohms
    Output resistance  350±5 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP65
    Material of element  Alloy steel
    Cable  Ø5.3*2000mm 4-core shielded
    Wiring code

     Red--Excitation+   Black--Excitation-
     Green--Signal+   White--Signal-




    S beam load cell is also known as s type load cell because of its feasured s beam structure,s-type force sensor is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell.

    S type load cell 0-10V

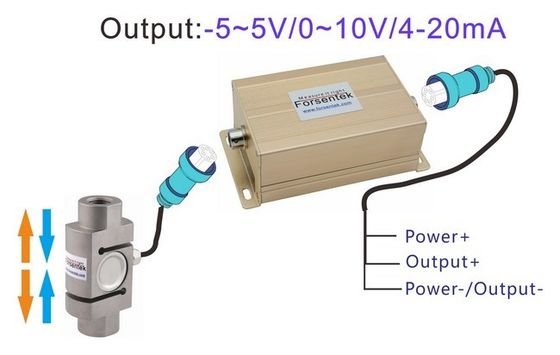

    S beam load cell FSSA outputs millivolt signal ranging -20~20mV, and signal amplification may be needed for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.

    tension compression force measurement
    The applied force can be displayed through a load cell indicator,force indicator FPT is integrated with high accuracy/high speed 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement; FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
