Flange to Square Drive Torque Sensor Static Reaction Torque Transducer

Flange to Square Drive Torque Sensor Static Reaction Torque Transducer


Features

• Stainless steel construction
• Strain gauge technology,analog output
• Flange to square drive connection
• Reaction torque measurement,non-rotating torque measurement
• Tailor-made service available

Dimensions


Specifications

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. Torque transducer can be devided into two types:rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensors are able to measure both rotating torque and non-rotating torque while reaction torque transducers can only measure non-rotating torque or torque with small rotating angle.

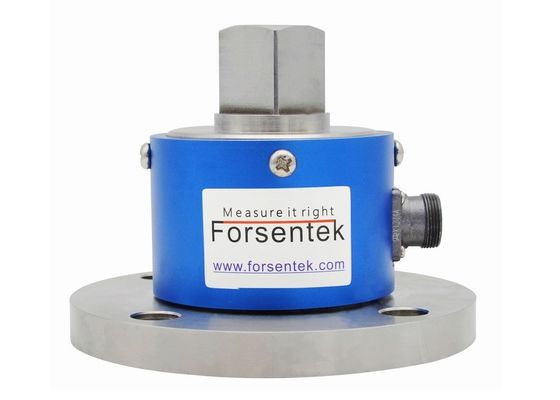

Flange to square drive reaction torque transducer FT04 is designed to measure static torque which is also known as reaction torque.The output range of FT04 is normally between -20~20mV which is proportional to applied torque, signal conditioner can be used to get -5~5V,-10~10V,0-5V,0-10V or 4-20mA output for easy data acquisition.

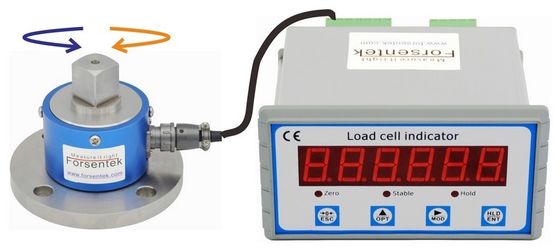

Torque indicator can be used to display the torque value.Digital meter FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA which is proportional to the measured value.
