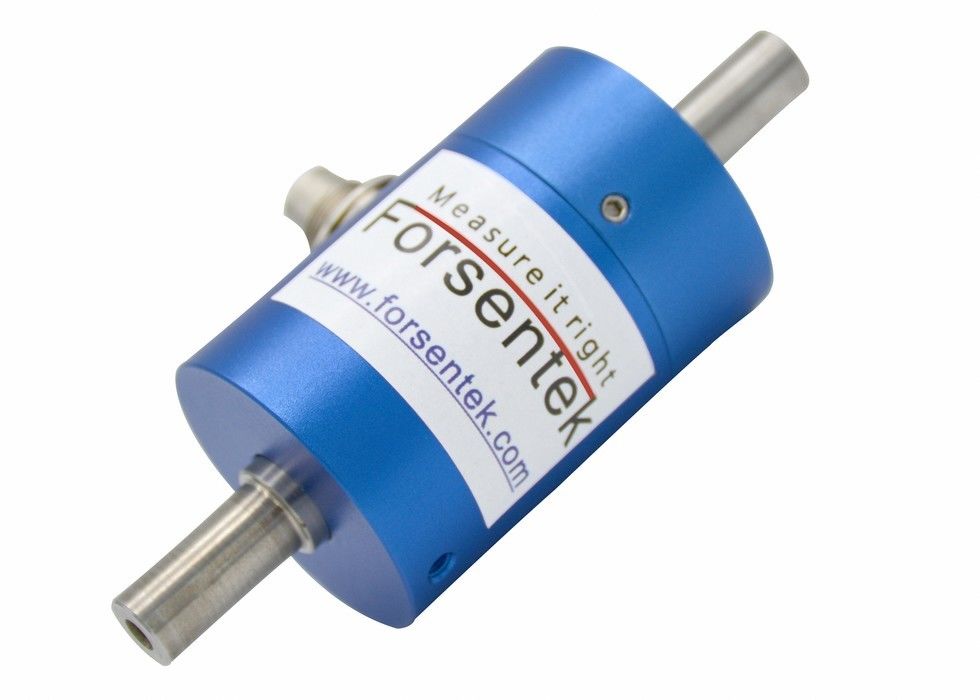

Shaft style reaction torque transducer miniature shaft torque sensor

Shaft style reaction torque transducer miniature shaft torque sensor

    • Shaft style reaction torque transducer miniature shaft torque sensor
    • Shaft style reaction torque transducer miniature shaft torque sensor
    • Shaft style reaction torque transducer miniature shaft torque sensor
    • Shaft style reaction torque transducer miniature shaft torque sensor
    • Shaft style reaction torque transducer miniature shaft torque sensor
  • Shaft style reaction torque transducer miniature shaft torque sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FT05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 0-5Nm(Selectable)
    Type: Reaction Torque Transducer Principle: Strain Gauge Torque Sensor
    Connection: Shaft To Shaft Customizable: Yes

    Shaft style reaction torque transducer mini torque sensor

    Shaft style reaction torque transducer miniature shaft torque sensor




    Features

    • Stainless steel construction,miniature size
    • Shaft to shaft type torque transducer
    • Strain gauge technology,analog output
    • Reaction torque measurement,non-rotating torque measurement

    Dimensions
     Shaft style reaction torque transducer miniature shaft torque sensor


    Specifications

    Rated capacity

    0.1Nm / 0.88lbf*in / 1kg*cm

    0.2Nm / 1.77lbf*in / 2kgf*cm

    0.3Nm / 2.66lbf*in / 3kgf*cm

    0.5Nm / 4.4lbf*in / 5kg-cm

    1Nm / 8.8lb*in / 10kgf-cm

    2Nm / 17.7lbf*in / 20kgf-cm

    3Nm / 26.5lbf*in / 30kgf*cm

    5Nm / 44lbf*in / 50kg*cm

    (Customizable)

    Rated output  1.0 mV/V
    Excitation  3-15V
    Zero balance  ±0.05mV/V
    Nonlinearity  ±0.2% R.O.
    Hysteresis  ±0.2% R.O.
    Nonrepeatability  ±0.1% R.O.
    Creep(10min)  ±0.1% R.O.
    Safe overload  150% F.S.
    Ultimate overload  200% F.S.
    Compensated temp.  -10...+40oC
    Operating temp.  -20...+60oC
    Temp. shift zero  ±0.02% R.O./oC
    Temp. shift span  ±0.02% R.O./oC
    Input resistance  350±30 ohms
    Output resistance  350±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP60
    Material of element  Stainless steel
    Cable  Ø5*3000mm 4-core shielded
    Wiring code

    Clockwise@

    Red--Excitation+ Black--Excitation-
     Green--Signal+ White--Signal-


    Shaft style reaction torque transducer miniature shaft torque sensor

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque transducer can be devided into two types: rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensor is able to measure both rotating torque and non-rotating torque while static torque transducer can only measure non-rotating torque or torque with small rotating angle.

    Shaft style reaction torque transducer miniature shaft torque sensor

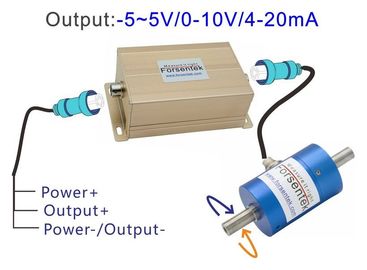

    Shaft style reaction torque transducer FT05 is designed to measure static torque which is also known as reaction torque.The output range of FT05 is normally between -20~20mV which is proportional to applied torque, signal conditioner can be used to get -5~5V,-10~10V,0-5V,0-10V or 4-20mA output for easy data acquisition.

    Shaft style reaction torque transducer miniature shaft torque sensor

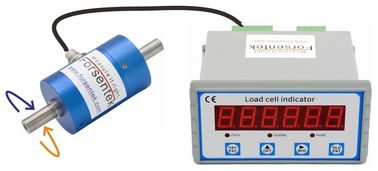

    Torque indicator can be used to display the torque value.Digital meter FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA which is proportional to the measured value.
