Rotary torque sensor fastening torque measurement tightening torque measurement

China Rotary torque sensor fastening torque measurement tightening torque measurement supplier
Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier Rotary torque sensor fastening torque measurement tightening torque measurement supplier

Large Image :  Rotary torque sensor fastening torque measurement tightening torque measurement

Product Details:

Place of Origin: China
Brand Name: Forsentek
Model Number: FYRD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Shockproof packing
Delivery Time: 3-20 working days
Payment Terms: Western Union, T/T,Paypal, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Type: Rotary Torque Transducer Capacity: 5NM 10NM 15NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Output: Analog Output

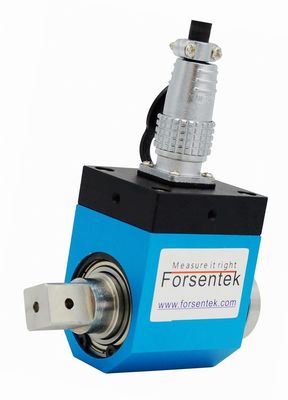

Square drive Rotary torque sensor for tightening torque measurement

Square rotary torque sensor FYRD is a slip-ring type torque transducer based on strain gauge technology intended for rotating torque measurement.Torque transducer FYRD offers 5NM / 10NM / 15NM / 20NM / 30NM / 50NM / 100NM / 200NM / 300NM / 500NM / 1000NM / 1500NM twelve measuring ragnes to choose from, 3/8" / 1/2" / 3/4" / 1" four different square sizes for different capacities to fit different torque wrenches.You may find square torque transducer FYRD suitable for torque auditing applications such as torque wrench torque calibration and so on.

rotary torque transducer

Specifications

Capacity

5NM 10NM 15NM 20NM 30NM 50NM 100NM

200NM 300NM 500NM 1000NM 1500NM

Rated output 1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.25% R.O.
Hysteresis ±0.25% R.O.
Nonrepeatability ±0.1% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./oC
Temperature shift span ±0.02% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP40
Material of element Stainless steel
Cable Ø5.5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-



A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Dynamic torque sensor is designed for rotating torque measurement like motor torque measurement,rotating shaft torque measurement, mixture torque measuring, fastening torque measurement, tightening torque measurement,etc..Dynamic torque transducer can also be used to measure static torque(which is also known as reaction torque).

torque measurement device

FYRD is a slip ring torque transducer,utilizing strain gage technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.

torque measurement unit

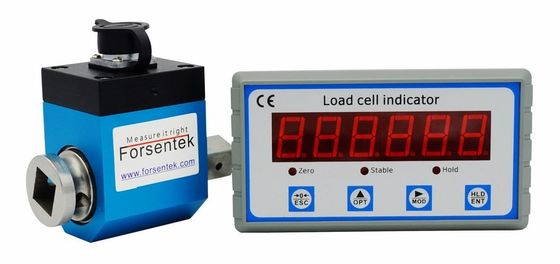

Torque indicator FPT can be used to display the real time torque value,torquemeter FPT is integrated with high accuracy 24-bit ADC,sampling speed up to 960Hz which makes it suitable for both static torque measurement and dynamic torque measurement. Modbus RTU protocol is supported through RS485 or RS232 communication interface. Aamplified signal 0-10V or 4-20mA is achievable from the display.

torque measurement

Rotary torque sensor fastening torque measurement tightening torque measurement
