Tension compression force transducer force sensors

Features

• Stainless steel construction,inline structure
• M8 threaded rods on both sides,easy to install
• Strain gauge technology,analog output
• Tension force measurement/compression force measurement
• Widely used for force overload protection,press-in force measurement,cylinder push pull force measurement,auto equipment,production line,press machine.etc.

Dimensions(unit in "mm")


Specifications


A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.

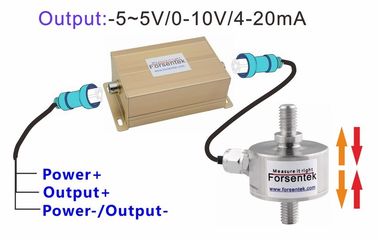

Tension and compression force transducer FL34 is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -20~20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.

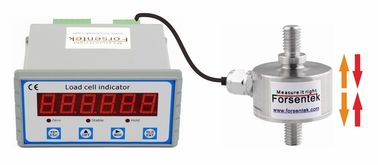

The force can be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.
