| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FY02 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof packing |
| Delivery Time: | 3-12 working days |
| Payment Terms: | Western Union, T/T,Paypal, MoneyGram |
| Supply Ability: | 2000pcs/month |
| Type: | Rotating Torque Load Cell | Capacity: | 0.1NM 0.2NM 0.3NM 0.5NM 1NM 2NM 3NM 5NM |
|---|---|---|---|
| Output: | Analog | Usage: | Servo Motor Torque Measurement |
| Structure: | Shaft-to-shaft |
Click here to download datasheet
Features
Dimensions(unit in "mm")
| Ordering code | Torque Range | Torque measure direction |
| FY02-0.1NM | 0~0.1N*m |
Clockwise & Anticlockwise |
| FY02-0.2NM | 0~0.2N*m | |
| FY02-0.5NM | 0~0.5N*m | |
| FY02-1NM | 0~1N-m | |
| FY02-2NM | 0~2N*m | |
| FY02-3NM | 0~3N*m | |
| FY02-5NM | 0~5N-m |
Specifications
| Rated capacity |
0.1Nm / 0.88lbf*in / 1kg*cm 0.2N*m / 1.77lbf-in / 2kg*cm 0.5N-m / 4.43lbf*in / 5kg-cm 1N*m/ 8.85lb-in / 10kg-cm 2N*m / 17.7lb*in / 20kg*cm 3Nm / 26.5lb*in / 30kg*cm 5Nm / 44.3 lb-in / 50kg*cm |
||
| Rated output | 1.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.2% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.2% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.1% R.O. | Output resistance | 350±5 ohms |
| Creep(10min) | ±0.1% R.O. | Insulation resistance | >2000M ohms |
| Safe overload | 150% F.S. | Ingress protection | IP40 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded (Mating connector included) | ||
| Wiring code |
Clockwise@ Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
||
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Torque transducers can be devided into two types:Rotating torque sensors and static torque sensors.Rotating torque sensor is also known as rotary torque transducer which can be used to measure both static torque and dynamic torque on a rotating shaft,while a static torque transducer is normlly used for non-rotating torque measurement which is also know as reaction torque.

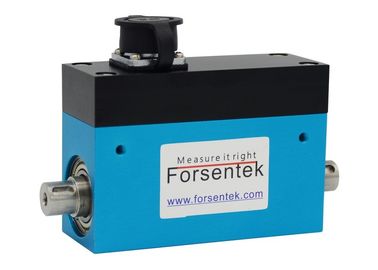

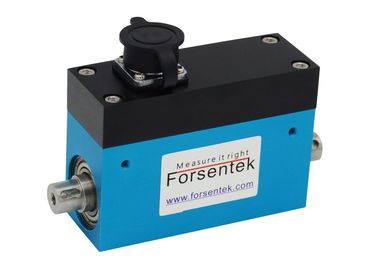

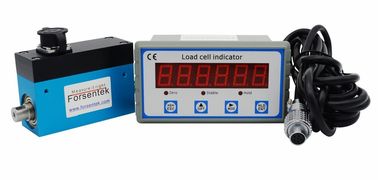

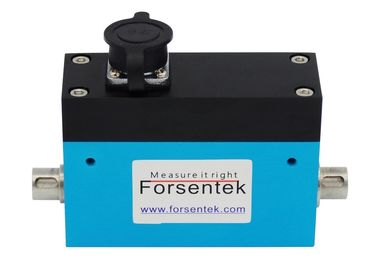

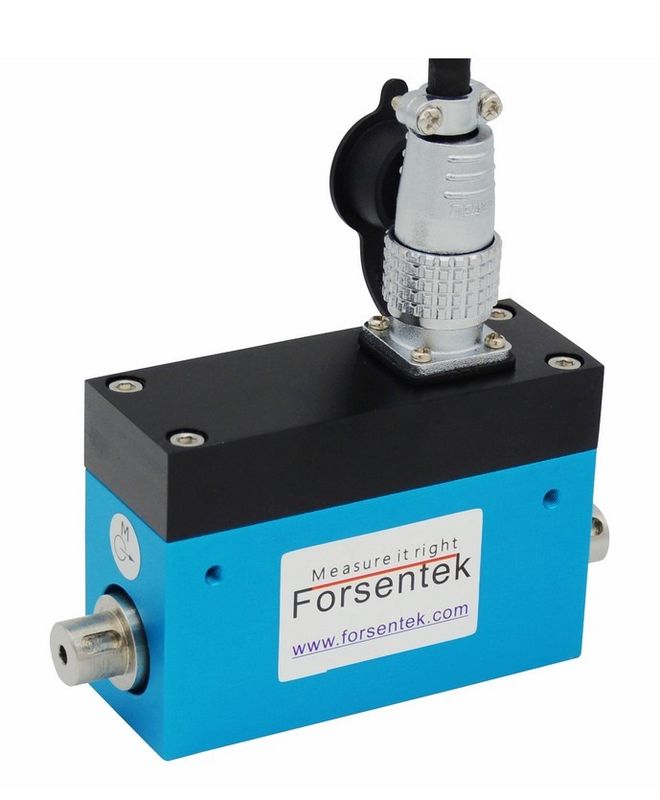

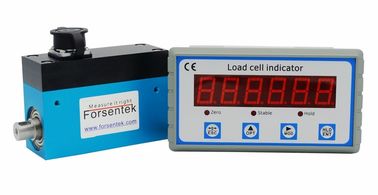

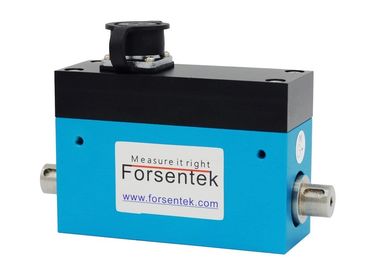

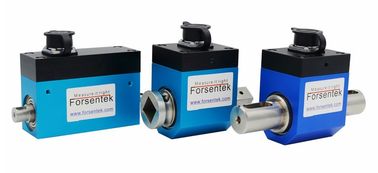

Rotating torque load cell FY02 is a slip ring torque transducer,utilizing strain gauge technology,compact size,shaft to shaft structure,easy to install,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.The measured torque can also be display through torque indicator.
