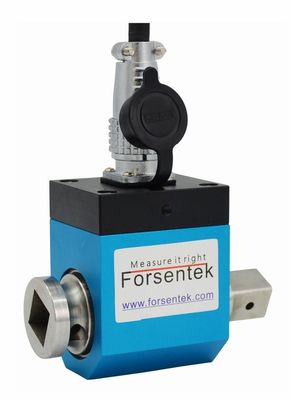

Square drive Rotary torque transducer rotating torque measurement

Square drive Rotary torque transducer rotating torque measurement

    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
    • Square drive Rotary torque transducer rotating torque measurement
  • Square drive Rotary torque transducer rotating torque measurement

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FYRD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Type: Dynamic Torque Sensor Capacity: 5NM 10NM 15NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
    Output: Analog Output

    Square Drive Rotary torque transducer Dynamic torque sensors

    rotary torque transducer

    rotary torque sensor

    Features

    • Strain gauge technology,analog output
    • Slip-ring rotary torque transducer
    • Both clockwise and counterclockwise measurement
    • Up to 3000 r/m
    • Rotary torque measurement,dynamic torque measuring,fastening torque measurement,tightening torque measurement

    rotary torque sensors

    Dimensions

    dynamic torque sensor

    rotary torque transducers

    Specifications

    Rated capacity

    5NM 10NM 15NM 20NM 30NM 50NM 100NM

    200NM 300NM 500NM

    Rated output 1.5mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Non-linearity ±0.25% R.O.
    Hysteresis ±0.25% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% R.O./oC
    Temperature shift span ±0.02% R.O./oC
    Input resistance 350±30 ohms
    Output resistance 350±10 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP40
    Material of element Stainless steel
    Cable Ø5*3000mm 4-core shielded
    Wiring code

    Clockwise @

    Red--Exc+    Black--Exc-

    Green--Sig+    White--Sig-



    Rotary torque transducer Dynamic torque sensors

    rotating torque load cell

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Dynamic torque sensor is designed for rotating torque measurement like motor torque measurement,rotating shaft torque measurement, mixture torque measuring, fastening torque measurement, tightening torque measurement,etc..Dynamic torque transducer can also be used to measure static torque which is also known as reaction torque.

    torque measurement unit

    Rotary torque sensor FYRD is a slip ring torque transducer,utilizing strain gage technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.

    torque measurement device

    Torque indicator FPT can be used to display the real time torque value,torquemeter FPT is integrated with high accuracy 24-bit ADC,sampling speed up to 960Hz which makes it suitable for both static torque measurement and dynamic torque measurement. Modbus RTU protocol is supported through RS485 or RS232 communication interface. Aamplified signal 0-10V or 4-20mA is achievable from the display.

    rotating torque sensor

    rotating torque sensors

    rotating torque transducer

    rotary torque measurement

    dynamic torque transducer
