|Place of Origin:||China|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Shockproof carton|
|Delivery Time:||3-20 working days|
|Payment Terms:||Western Union, MoneyGram, T/T,Paypal|
|Type:||Reaction Torque Transducer||Principle:||Strain Gauge Torque Sensor|

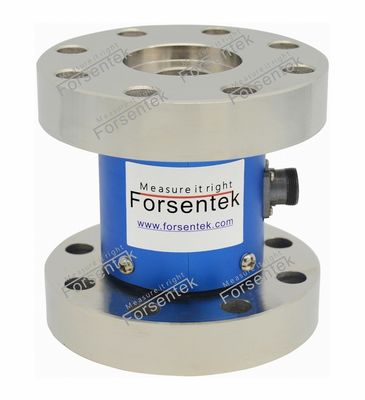

Flange torque sensor flange torsion transducer for reaction torque measurement
200NM 300NM 500NM 1000NM 2000NM
3000NM 5000NM 10000NM
|Rated output||1.5 mV/V|
|Safe overload||150% F.S.|
|Ultimate overload||200% F.S.|
|Temp. shift zero||±0.02% R.O./oC|
|Temp. shift span||±0.02% R.O./oC|
|Input resistance||700±30 ohms|
|Output resistance||700±10 ohms|
|Insulation resistance||>5000M ohms|
|Material of element||Alloy steel|
|Cable||Ø5*3000mm 4-core shielded|
Red--Exc+ Black--Exc- Green--Sig+ White--Sig-
A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. Torque transducer can be devided into two types:rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensors are able to measure both rotating torque and non-rotating torque while reaction torque transducers can only measure non-rotating torque or torque with small rotating angle.
Flange reaction torque transducer FT03 is designed to measure static torque which is also known as reaction torque in both clockwise and counterclockwise direction.The output range of FT03 is normally between -20~20mV which is proportional to applied torque, signal conditioner can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA output for easy data acquisition.
Torque indicator can be used to display the torque value.Digital meter FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA which is proportional to the measured value.
