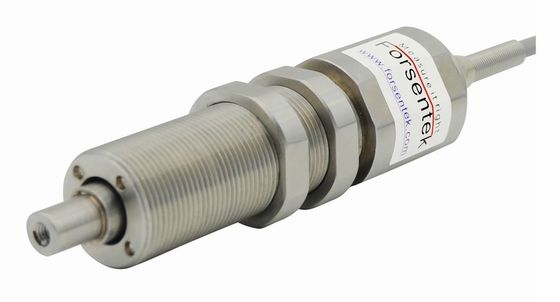

Cable tension sensor|Wire tension sensor|Tensile sensor

Cable tension sensor|Wire tension sensor|Tensile sensor

    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
    • Cable tension sensor|Wire tension sensor|Tensile sensor
  • Cable tension sensor|Wire tension sensor|Tensile sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FZAD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 10N 20N 50N 100N 200N 300N 500N
    Output: 2.0mV/V 0-5V 0-10V 4-20mA Principle: Strain Gauge Load Cell

    Cable tension sensor|Wire tension sensor|Tensile sensor

    cable tension sensor

    wire tension sensor
    Features

    • Stainless steel construction,strain gauge technology
    • 0-5V,0-10V or 4-20mA amplified output achievable
    • Widely used for yarn tension force measurement,cable tension force measurement.etc.

    Dimensions
    tensile sensor
    yarn tension sensor
    tension sensor
    tensile force sensor
    Specifications

    Capacity10N 20N 50N 100N 200N 300N 500N
    Rated output2.0mV/V 0-5V 0-10V 4-20mA
    Excitation 5-15V
    Zero balance ±2% R.O.
    Non-linearity ±0.3% R.O.
    Hysteresis ±0.3% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(30min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.05% R.O./10oC
    Temperature shift span ±0.05% R.O./10oC
    Input resistance 690±100 ohms
    Output resistance 650±10 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Stainless steel
    Cable Ø5*2000mm(Longer cable available)
    Wiring code

     Red--Exc+ Black--Exc-

     Green--Sig+ White--Sig-


    Yarn tension sensor tension force measurement transducer
    tension force sensor
    yarn tension sensor
    measure cable tension
