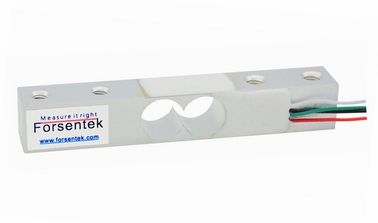

Low cost load cell 1kg 2kg 3kg 5kg 10kg 20kg Weight sensor FHD

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Model Number:	FHD/FHDA

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Packaging Details:	Shockproof carton
Delivery Time:	3-20 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	50000pcs/month

Contact Now

Detailed Product Description

Material:	Aluminum Alloy	Capacity:	1kg 2kg 3kg 5kg 10kg 20kg
Output:	Analog Output	Principle:	Strain Gauge Load Cell
Usage:	Weight Measurement,weighing

Low cost load cell 1kg 2kg 3kg 5kg 10kg 20kg Weight sensor FHD

Name: Low cost load cell 1kg 2kg 3kg 5kg 10kg 20kg Weight sensor FHD
Brand: Force sensor torque transducer
SKU: FHD/FHDA
Availability: InStock

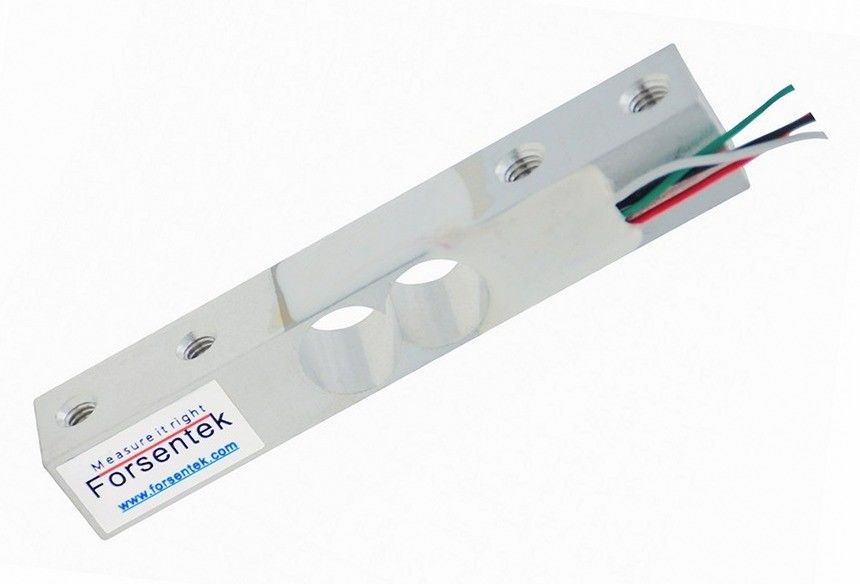

low cost load cell

Features

Aluminum construction,small size
1000 ohms resistance,low heat emission
Single point load cell,easy to install
Low cost load cell
Widely used for price computing scales,counting scales,bench scales.etc.

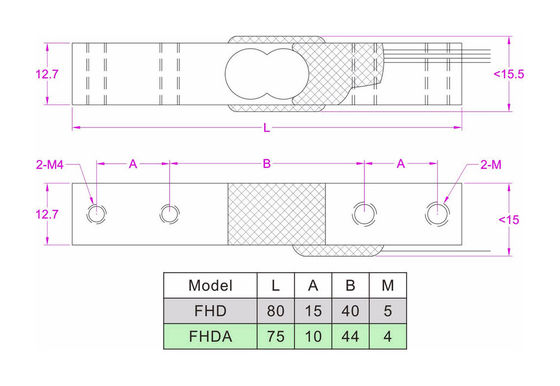

Dimensions
cheap load cell FHD

Specifications

Rated capacity	1kg 2kg 3kg 5kg 10kg 20kg
Rated output	1.0 mV/V
Excitation	3-12V
Zero balance	±0.1mV/V
Non-linearity	±0.05% R.O.
Hysteresis	±0.05% R.O.
Non-repeatability	±0.05% R.O.
Creep(3min)	±0.05% R.O.
Safe overload	120% F.S.
Ultimate overload	150% F.S.
Operating temperature	-10...+55^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	1050±100 ohms
Output resistance	1050±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Cable	32AWG*180mm 4-wire
Wiring code	Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

cheap load cell
A load cell sensor is a transducer that converts mechanical force into electrical signal which is proportional to the weight being applied.The measured load or force causes deformation of the measuring element,the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load can be measured by measuring the output signal from the load cell.

Click here to download datasheet
