Place of Origin: | China |
Brand Name: | Forsentek |
Model Number: | FH03 |
Minimum Order Quantity: | 3pcs |
---|---|
Packaging Details: | Shockproof carton |
Delivery Time: | 3-20 working days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 20000pcs/month |

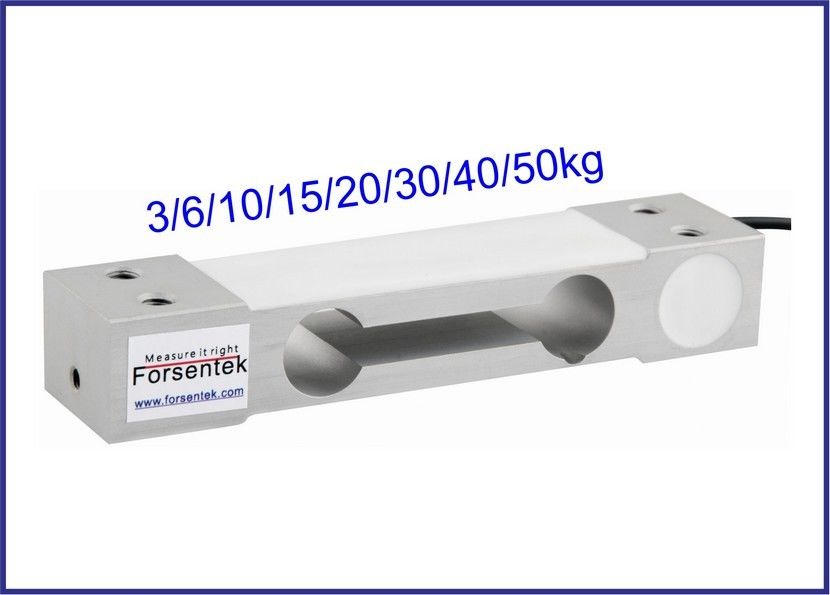

Material: | Aluminum Alloy | Capacity: | 3/6/10/15/20/30/40/50kg |
---|---|---|---|
Output: | Analog Output | Principle: | Strain Gauge Weight Transducer |
Usage: | Measure Weight,load Measurement,weighing |
Features

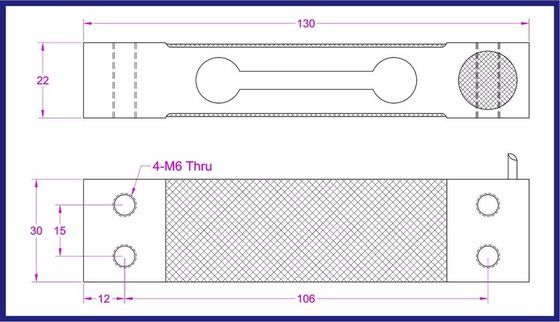

Dimensions(unit in "mm")
Specifications
Rated capacity | 3kg 6kg 10kg 15kg 20kg 30kg 40kg 50kg |
Rated output | 2.0±10%mV/V |
Excitation | 3-15V |
Zero balance | ±5% R.O. |
Nonlinearity | ±0.015% R.O. |
Hysteresis | ±0.015% R.O. |
Non-repeatability | ±0.01% R.O. |
Creep(30min) | ±0.02% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | 0...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.02% R.O./10oC |
Temperature shift span | ±0.02% R.O./10oC |
Input resistance | 410±30 ohms |
Output resistance | 350±10 ohms |
Insulation resistance | >5000M ohms |
Ingress protection | IP65 |
Material of element | Aluminum alloy |
Cable | Ø3*400mm(Longer cable available) |
Wiring code |
Red--Exc+ Black--Exc- |
A load cell is a transducer that converts weight into electrical signal proportional to the weight or force acting onto it.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/weight can be measured by measuring the output signal from the load cell.
