    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FYE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Type: Dynamic Torque Transducer Capacity: 10NM 20NM 30NM 50NM 100NM
    Output: Analog Output

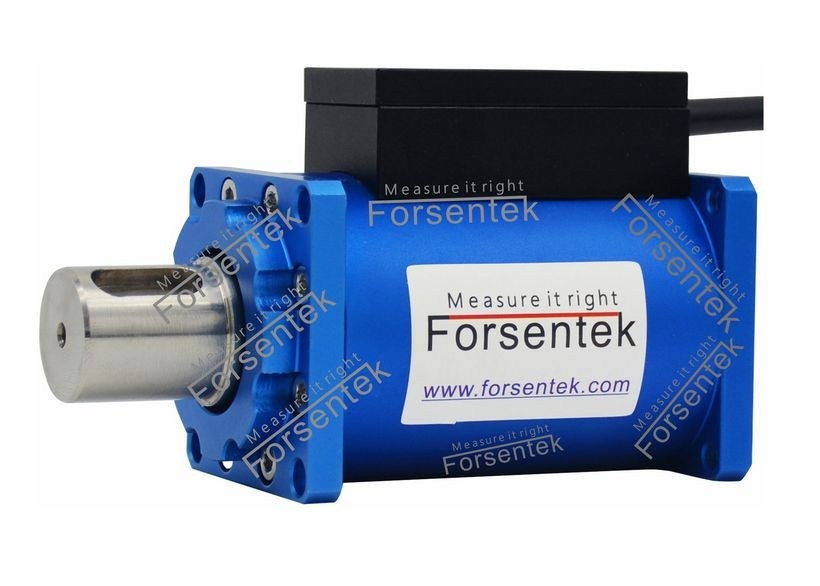

    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors

    Features

    • Strain gauge technology,slip-ring torque sensor
    • Flange mounting,easy to install
    • Both clockwise and counterclockwise measurement
    • Rotating speed up to 4000RPM
    • 0-5V,0-10V or 4-20mA output achievable through external amplifier
    • Rotating torque measurement,motor torque measure,engine torque measurement

    Dynamic torque transducer|Rotary torque sensors

    Dimensions(unit in "mm")

    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors

    Specifications

    Capacity

    10NM 20NM 30NM 50NM 100NM

    (Higher capacity on request)
    Rated output 1.5mV/V
    Excitation 5-15V
    Zero balance ±2% R.O.
    Nonlinearity ±0.25% R.O.
    Hysteresis ±0.25% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(30min) ±0.1% R.O.
    Safe overload 120% F.S.
    Ultimate overload 200% F.S.
      Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.01% R.O./oC
    Temp. shift span ±0.01% R.O./oC
    Input resistance 350±30 ohms
    Output resistance 350±10 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP50
    Material of element Stainless steel
    Cable Ø5.3*3000mm
    Wiring code

    Red--Exc+ Green--Exc-

    Yellown--Sig+ White--Sig-

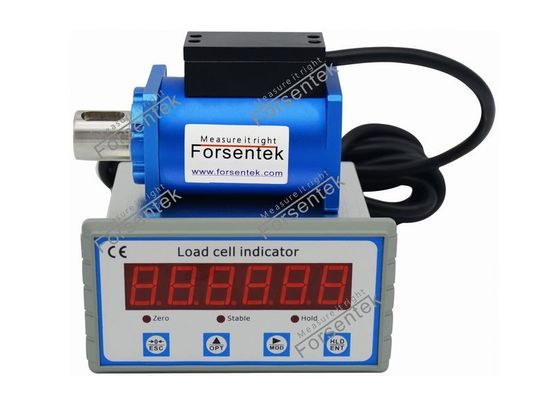

    Rotating torque sensor with indicator to display the torque value

    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors



    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors

    Dynamic torque transducer|Rotary torque sensors
