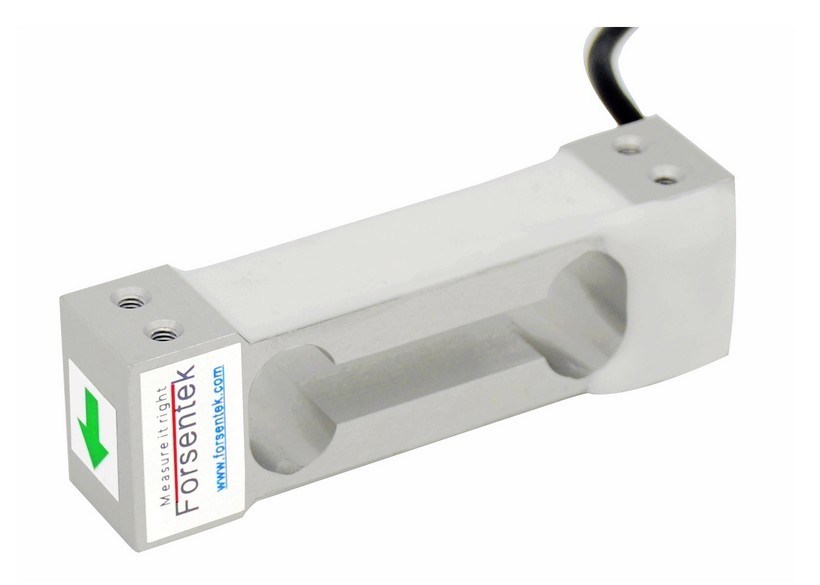

Load cell 5kg load sensor 5kg

Load cell 5kg load sensor 5kg

    • Load cell 5kg load sensor 5kg
    • Load cell 5kg load sensor 5kg
    • Load cell 5kg load sensor 5kg
    • Load cell 5kg load sensor 5kg
  • Load cell 5kg load sensor 5kg

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FH02

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 20000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 0.5kg 1kg 2kg 3kg 5kg 6kg 10kg 15kg 20kg
    Output: Analog Output Principle: Strain Gauge Load Sensor
    Usage: Load Measurement,weighing

    Load cell 5kg load sensor 5kg

    load cell 5kg

    • Aluminum construction,small size load cell
    • Strain gauge technology,high accuracy
    • Single point load cell,easy to install
    • Corner trimmed for platform sizes up to 120*120mm
    • Very competitive price
    • Widely used for counting scales and other weighing applications

    Dimensions(unit in "mm")
     load cell 5kg
    load sensor 5kg

    Rated capacity0.5kg 1kg 2kg 3kg 5kg 6kg 10kg 20kg
    Rated output2.0±10%mV/V
    Zero balance±5% R.O.
    Nonlinearity±0.02% R.O.
    Hysteresis±0.02% R.O.
    Nonrepeatability±0.02% R.O.
    Creep(30min)±0.02% R.O.
    Safe overload150% F.S.
    Ultimate overload200% F.S.
    Compensated temperature0...+40oC
    Operating temperature-20...+60oC
    Temperature shift on zero±0.03% R.O./10oC
    Temperature shift on span±0.03% R.O./10oC
    Input resistance410±30 ohms
    Output resistance350±10 ohms
    Insulation resistance>5000M ohms
    Ingress protectionIP65
    Material of element Aluminum alloy
    Cable Ø3*400mm(Longer cable available)
    Wiring code

    Red--Exc+ Black--Exc-
    Green--Sig+ White--Sig-

    Load cell 5kg 3kg 2kg 1kg 0.5kg

    5kg load cell

    Load cell converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element,the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load can be measured by measuring the output signal from the load cell.
