| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FT03 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T,Paypal |
| Supply Ability: | 2000pcs/month |
| Material: | Alloy Steel | Capacity: | 200NM~100000NM |
|---|---|---|---|
| Type: | Reaction Type Torque Sensor | Principle: | Strain Gauge Torque Sensor |

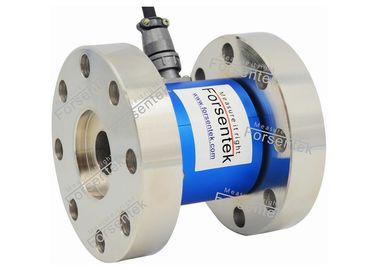

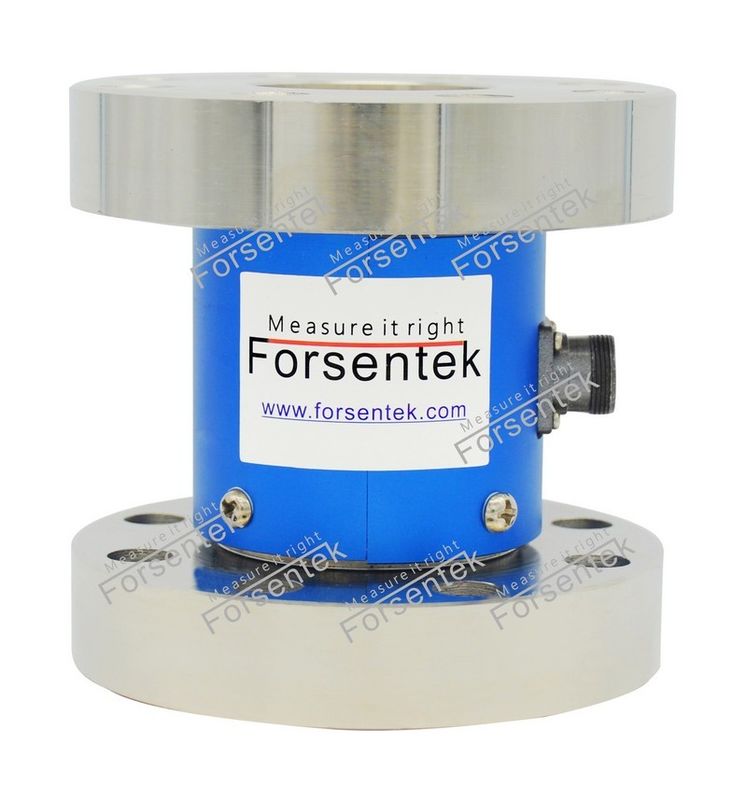

Flange style reaction torque transducer 5000NM 10000NM 20000NM
Features
Dimensions(Unit in "mm)
Specifications
| Rated capacity | 200NM 300NM 500NM 1000NM 2000NM 3000NM 5000NM 10000NM 20000NM 30000NM 40000NM 50000NM 60000NM 100000NM |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity |
200NM~10kNM: ±0.25% R.O. 20k~10kNM: ±0.5% R.O. |
| Hysteresis |
200NM~10kNM: ±0.25% R.O. 20k~10kNM: ±0.5% R.O. |
| Nonrepeatability |
200NM~10kNM: ±0.1% R.O. 20k~10kNM: ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.02% R.O./oC |
| Temp. shift span | ±0.02% R.O./oC |
| Input resistance | 700±100 ohms |
| Output resistance | 700±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Alloy steel |
| Cable |
Ø5.5*3000mm 4-core shielded (Mating connector included) |
| Wiring code |
Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
A torque transducer converts a torsional mechanial input into an electrical output signal. Torque sensor can be devided into two types:rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensors are able to measure both rotating torque and non-rotating torque while reaction torque transducers can only measure non-rotating torque or torque with small rotating angle.

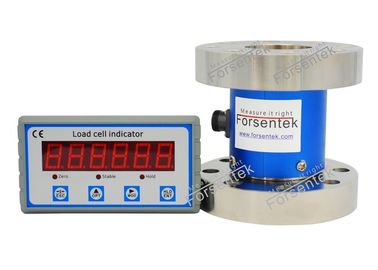

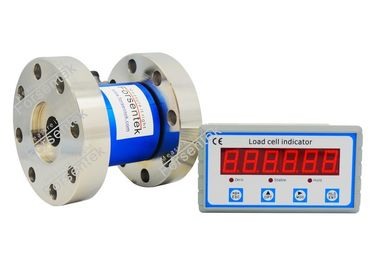

Torque meter can be used to display the torque value.Digital meter FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA which is proportional to the measured value.
