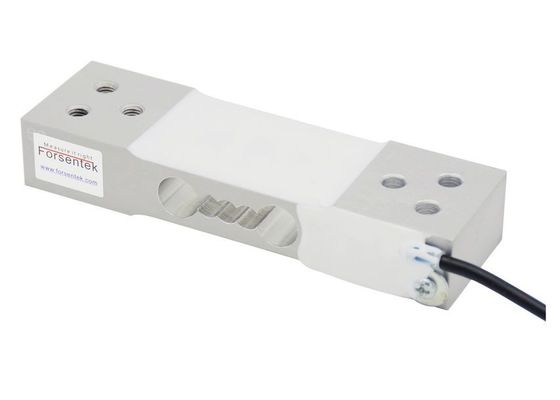

200 lb load cell 100 lb loadcell 50 lbs

200 lb load cell 100 lb loadcell 50 lbs

    • 200 lb load cell 100 lb loadcell 50 lbs
    • 200 lb load cell 100 lb loadcell 50 lbs
    • 200 lb load cell 100 lb loadcell 50 lbs
    • 200 lb load cell 100 lb loadcell 50 lbs
    • 200 lb load cell 100 lb loadcell 50 lbs
  • 200 lb load cell 100 lb loadcell 50 lbs

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FNI

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 20kg 30kg 40kg 50kg 60kg 100kg
    Output: Analog Output Principle: Strain Gauge Load Cell

    200 lb load cell 100 lb loadcell 50 lbs

    200 lb load cell 100 lb

    Features

    • Aluminum construction,low profile
    • Stain gage load cell,temperature compensated,high performance
    • Suitable for platform sizes up to 250*350mm platform
    • Competitive price
    • Widely used for bench scales and high accuracy industrial weighing applications

    100lb load cell 200 lbs

    Specifications

    Rated capacity 20kg 30kg 40kg 50kg 60kg 100kg
    Rated output 2.0mV/V
    Excitation 5-15V
    Zero balance ±5% of R.O.
    Non-linearity ±0.015% of R.O.
    Hysteresis ±0.01% of R.O.
    Non-repeatability ±0.01% of R.O.
    Creep(30min) ±0.02% of R.O.
    Safe overload 150% of F.S.
    Ultimate overload 200% of F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% of F.S./10oC
    Temperature shift span ±0.02% of F.S./10oC
    Input resistance 405±10 ohms
    Output resistance 350±5 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP65
    Material of element Aluminum alloy
    Cable Ø4*400mm(Longer cable available)
    Wiring code

    Red--EXC+ Black--EXC-

    Green--SIG+ White--SIG-



    Strain gauge load cell weight measurement sensor

    50 lb load cell 100 lbs

    A weight sensor is a transducer that converts weight into electrical signal whose magnitude is proportional to the weight being applied.The measured load causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal from the load cell will change proportionally,thus the weight can be measured by measuring the output signal from the loadcell.

    500N load cell 1 kn

    The output range of a standard strain gauge load cell is normally between 0-30mV,and signal amplification is needed for most applications,a load cell transdmitter can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA signal.



    Dimensions

    load cell 1KN 500N 600N 300N 200N

    load sensor datasheet
