5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell

5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell

    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
    • 5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FTA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 3000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum/Alloy Steel Capacity: 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM
    Type: Reaction Type Torque Sensor

    5 NM torque transducer 50 in-lb torque sensor 50 lb-in

    50 in-lb torque sensor 100 lb-in


    Features

    • Aluminum or alloy steel construction
    • Strain gauge technology,analog output
    • Flange to flange structure for easy installation
    • Non-rotating torque measurement
    • Custom design service available

    100 in-lb torque sensor 200 lb-in
    Specifications

    Rated capacity

    0.2NM 0.5NM 1NM 2NM 3NM 5NM

    10NM 20NM 30NM 50NM 100NM
    Rated output 1.5 mV/V
    Excitation 3-15V
    Zero balance ±2% R.O.
    Non-linearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% R.O./oC
    Temp. shift span ±0.01% R.O./oC
    Input resistance 350(700) ohms
    Output resistance 350(700) ohms
    Insulation resistance >2000M ohms
    Ingress protection IP60
    Material of element

    <50NM Aluminum alloy
    >30NM Alloy steel
    Cable

    Ø5.5*3000mm 4-core shielded cable

    (Mating connector included)
    Wiring code

    Clockwise
    Red--Exc+ Black--Exc- Green--Sig+ White--Sig-



    Flange to flange reaction torque sensor FTA

    20 in-lb torque sensor 300 lb-in
    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. There are two different types for torque transducers:Rotary torque sensor and reaction torque transducer.Reaction type torque sensor FTA is designed to measure torque where involves no rotation or only small rotation angle.

    100 lbf-in torque sensor 200 lbf-in

    The standard output of FTA is normally between -20~20mV which is proportional to applied torque,signal conditioner can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA output for easy data acquisition.5-point test report for both clockwise and counterclockwise direction is provided to make sure the declared parameters are met before shipping to our clients all over the world.

    torque measurement sensor

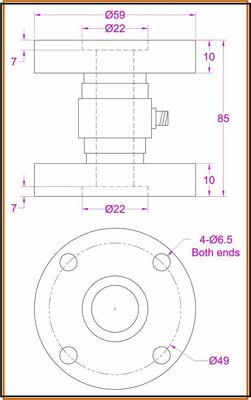

    Dimensions(unit in "mm")

    torque measurement 1 NM 2NM 5NM 10NM 20NM



    5 NM torque transducer 50 in-lb torque sensor 50 lb-in torque load cell
