High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer

High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer

    • High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer
    • High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer
    • High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer
    • High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer
  • High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FT03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 1-5 weeks
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 1880pcs/month
    Contact Now
    Detailed Product Description
    Usage: Reaction Torque Measurement Output: Analog Output
    Material: Alloy Steel Connection: Flange To Flange
    Capacity: 0-100kN*m(Selectable)

    High Capacity Reaction Torque Sensor 0-100kN*m Heavy Duty Torque Transducer

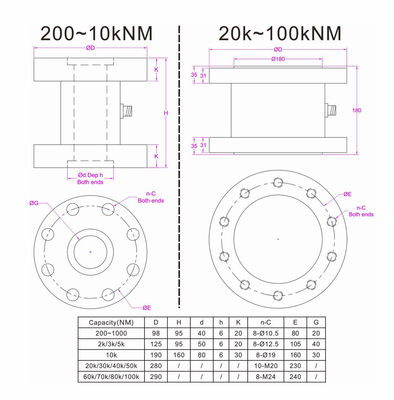

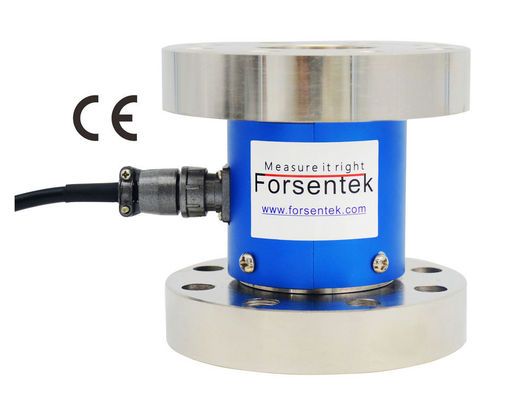

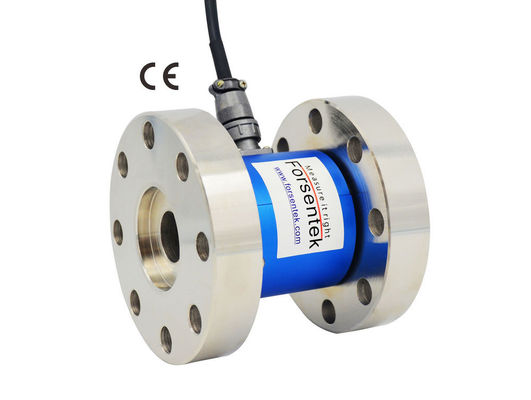

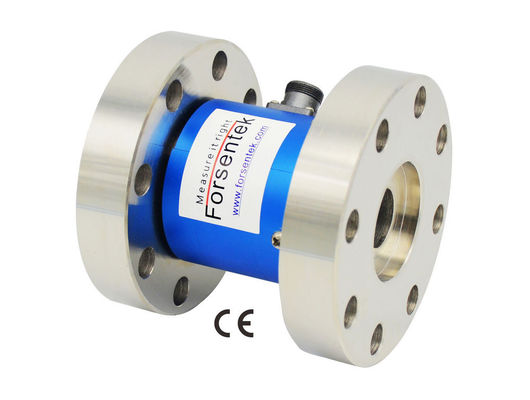

    Flange-to-flange High Capacity Reaction Torque Transducer FT03 is made of high stiffness alloy steel based on strain gauge technology, torque transducer FT03 delivers mV/V signal from wheatstone bridge bonded on a specially machined body. Flange to flange design makes it easy to mount FT03 to existing strutures. Reaction Torque Meter FT03 is available in a very wide measuring range from 200NM up to 100kNm, you may find torque load cell FT03 suitable for applications such as motor torque measurement, test bench applications, screw driver calibration, fatigue testing, twist measurement, motor dynamometers, actuator test as so on. Flange Torque Transducer FT03 can be modified or customized to meet requirements of different applications.
    heavy duty reaction torque sensor

    Specifications

    Rated capacity

    200N*m / 20kg*m / 1.77klb-in

    300Nm / 30kgf*m / 2.66k lb-in

    500N*m / 50kgf*m / 4.4klbf-in

    1000Nm / 100kg*m / 8.85klb-in

    2000N*m / 200kgf*m / 17.7klbf-in

    3000N-m / 300kg-m / 26.5klb-in
    5000Nm / 500kgf-m / 44klbf-in

    10kN*m / 1000kg*m / 88.5klb-in

    20kNm / 2000kg*m / 177klbf-in

    30kN-m / 3000kgf*m / 265klb-in

    40kN*m / 4000kg*m / 354klbf-in
    50kN*m / 5000kgf*m / 442klb-in

    60kNm / 6000kg-m / 531klb-in

    70kN-m / 7000kg-m / 620klb-in

    80kN-m / 8000kg*m / 708klbf-in

    100kN*m / 10000kgf*m / 885klb-in

    (Customizable)

    Rated output 1.5 mV/V Compensated temp. -10...+40oC
    Excitation 3-15V Operating temp. -20...+60oC
    Zero balance ±0.05mV/V Temp. shift zero ±0.02% R.O./oC
    Nonlinearity 200Nm~10kNM: ±0.25% R.O.
    20k~100kNm: ±0.5% R.O.
    Temp. shift span ±0.02% R.O./oC
    Hysteresis

    200Nm~10kNm: ±0.25% R.O.

    20k~100kNm: ±0.5% R.O.

    Input resistance 700±50 ohms
    Nonrepeatability

    200Nm~10kNm: ±0.1% R.O.

    20k~100kNm: ±0.2% R.O.

    Output resistance 700±10 ohms
    Creep(10min) ±0.1% R.O. Insulation resistance >2000M ohms
    Safe overload 150% F.S. Ingress protection IP50
    Ultimate overload 200% F.S. Material of element Alloy steel
    Cable Ø5*3000mm 4-core shielded with mating connector
    Wiring code

    Clockwise@

    Red--Exc+ Black--Exc- Green--Sig+ White--Sig-



    A Reaction Torque Sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of high capacity torque sensor FT03 is normally within -25mV...+25mV, signal amplification may be required for most applications, an external signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.Taking torque meter FT03-10kNm and amplifier FSC(-10-10V)-24V for example, the torque-voltage relationship will be 0-10kN*m in clockwise direction VS 0-10V output, 0-10kN-m in CCW direction VS 0-(-10V) output.

    High Range Reaction Torque Transducer 0-100kN*m High Capacity Reaction Torque Sensor
    high capacity reaction torque transducer

    Click here to download datasheet
