Compression and tension load cell flange mounted press force sensor

Compression and tension load cell flange mounted press force sensor

    • Compression and tension load cell flange mounted press force sensor
    • Compression and tension load cell flange mounted press force sensor
  • Compression and tension load cell flange mounted press force sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FFD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Type: Flat Load Cell Capacity: 2kN 3kN 5kN 10kN 20kN
    Usage: Force Measurement Output: Analog
    Load Direction: Tension And Compression Mounting: Flange-to-flange

    Compression and tension load cell flange mounted press force sensor

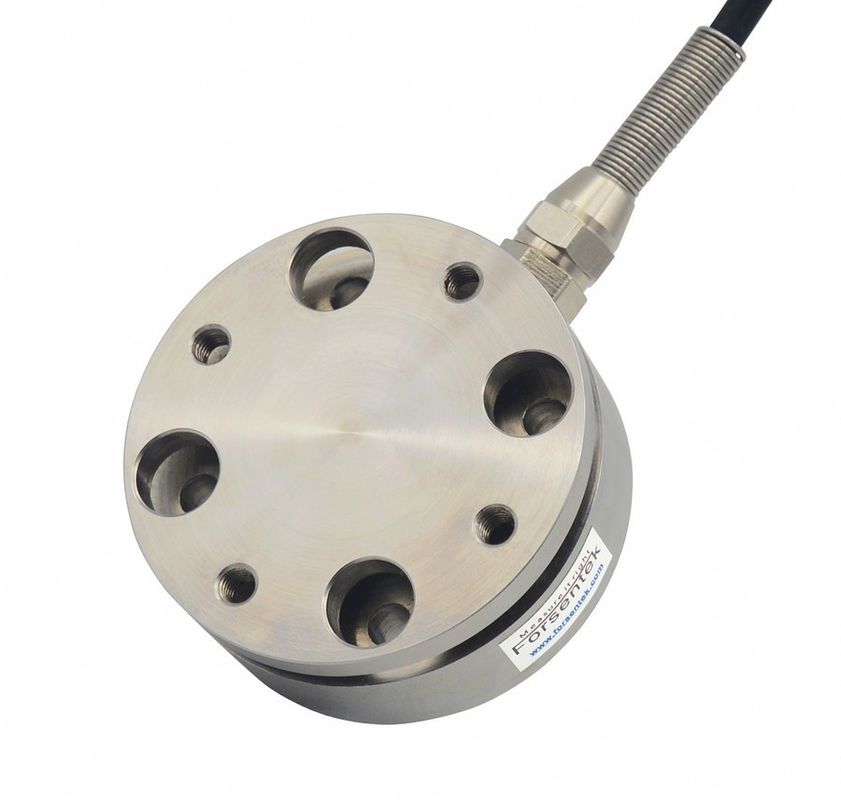

    Tension load cell force transducer FFD is made of stainless steel based on strain gauge technology intended for both compression and tension force measurement,force sensor FFD offers 2kN / 3kN / 5kN / 10kN / 20kN five different rated capacities to choose from,which delivers maximum 0.2% non-linearity of the rated output.Low profile design with only 25mm total height,flange-to-flange structure enables FFD to be easily and firmly connected to force applying mechanism,you may find transducer FFD suitable for applications such as hand press force monitoring,actuator force control,assembly force checking,spring testing,hydraulic cylinder thrust force measurement,ultrasonic welding clamp force control,and so on.

    tension load cell

    Specifications

    Capacity

    2kN 3kN 5kN 10kN 20kN

    (200kg 300kg 500kg 1000kg 2000kg)

    Rated output 1.0 mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(5min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% R.O./oC
    Temperature shift span ±0.02% R.O./oC
    Input resistance 750±100 ohms
    Output resistance 702±5 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP65
    Material of element Stainless steel
    Cable Ø5*3000mm 4-core shielded cable
    Wiring code

    Red--Excitation+   Black--Excitation-

    Green--Signal+   White--Signal-



    Dimensions(unit in "mm"-Customizable)

    tension load cell flange mounted

    Click here to download datasheet
