| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FL25 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3360pcs/month |
| Type: | Threaded Inline Load Cell | Capacity: | 0-100kg(Selectable) |
|---|---|---|---|
| Output: | Analog | Thread: | M5/M6 |
| Load Direction: | Tension/Compression |

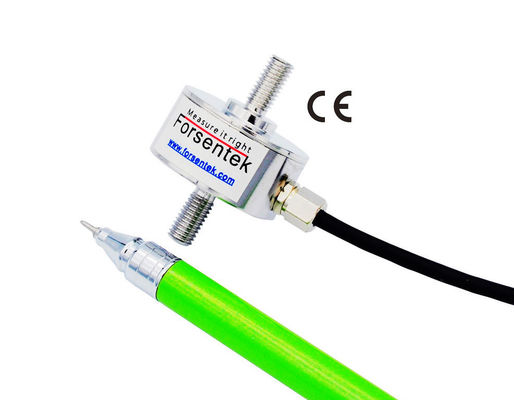

M5/M6 Rod End Tension Load Cell 100kg 50kg 20kg 10kg 5kg Cylindrical Pull Load Cell
Threaded in-line Compression Tension Load Cell FL25 is made of 17-4 stainless steel and CE certified. Rod End Force Transducer FL25 offers rugged structure for industrial applications.Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement.In-line Force Sensor FL25 can be easily mounted to existing system through M5 or M6 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt,bolt adapter,etc.,to fit different usage requirements. Tension and Compression Force Transducer FL25 uses metal foil strain gauge technology to deliver 2.0mV/V rated output with 0-5kg / 0-10kg / 0-20kg / 0-30kg / 0-50kg / 0-60kg / 0-100kg seven rated measuring ranges to choose from. Each sensor is integrated with a 4-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Inline Type Tension Compression Load Cell FL25 is normally used for press-in force measurement, cylinder push pull force measurement, auto equipment, production line, hand press machine.etc.Model FL25 can be modified or customized as per request of our clients.
Specifications
| Rated capacity |
50N / 5kg / 11lb 100N / 10kg / 22lb 200N / 20kg / 44lb 300N / 30kg / 66lb 500N / 50kg / 110lb 600N / 60kg / 132lb 1kN / 100kg / 220lb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.5% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.5% R.O. | Input resistance | 750±100 ohms |
| Nonrepeatability | ±0.2% R.O. | Output resistance | 750±100 ohms |
| Creep(10min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP64 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Cylindrical Pull Load Cell FL25-5kg with 2.0mV/V sensitivity powered by 3.3V DC,the output range is -6.6mV...+6.6mV.
Example two: In-line Tension Load Cell FL25-10kg with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.
Load cell + Signal amplifier:
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Tension And Compression Load Cell FL25-20kg working with amplifier FSC(-10-10V)-24V,the load-voltage relationship will be 0-20kg compression load VS 0-10V output, 0-20kg tension load VS 0-(-10V) output.
