| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FCFK |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2100pcs/month |
| Structure: | Micro Cylindrical Load Cell | Capacity: | 1kg 2kg 5kg 10kg 20kg |
|---|---|---|---|
| Type: | Miniature Compression Sensor | Output: | Analog Sensor |
| Load Direction: | Compression | Mounting: | Flange-to-flange |

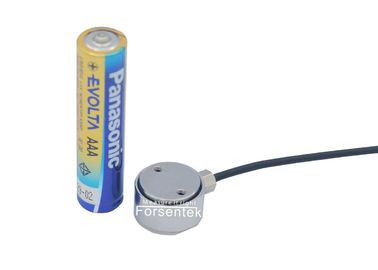

Miniature load cell 1kg 2kg 5kg 10kg 20kg compression force measurement transducer

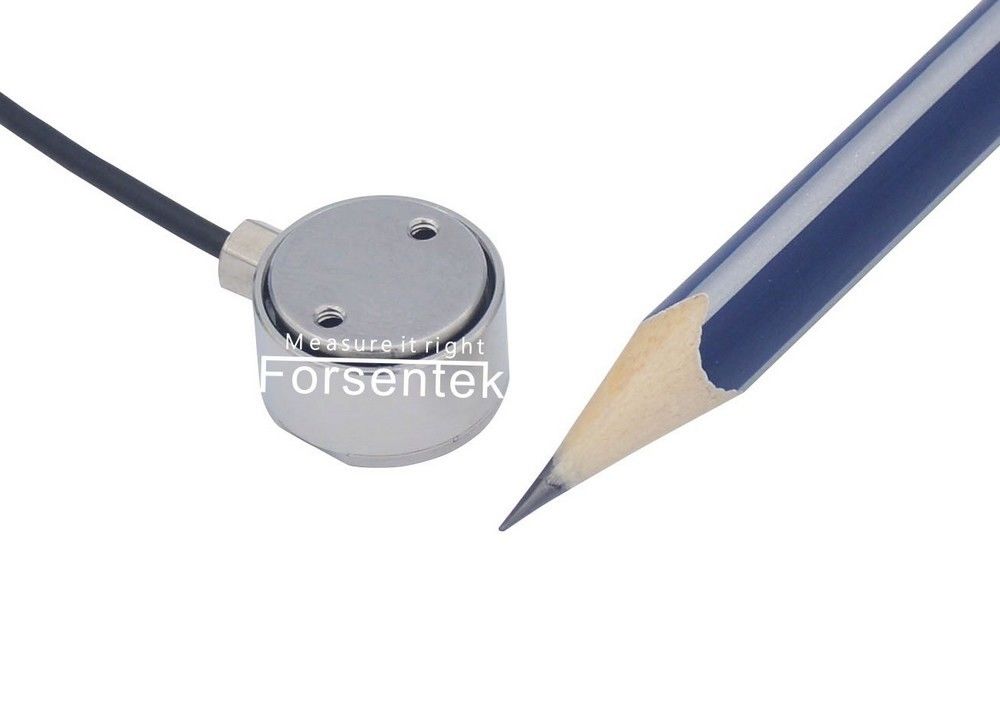

Miniature Compression Load Cell FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity.Small size flat load cell FCFK offers 0-1kg / 0-2kg / 0-5kg / 0-10kg / 0-20kg five measuring ranges to choose from, flange to flange mounting,compact design,you may find force transducer FCFK applicable for compression force measurement applications with limited mounting space,such as fixture clamping force measurement, assembly force monitoring, force distribution test,etc..

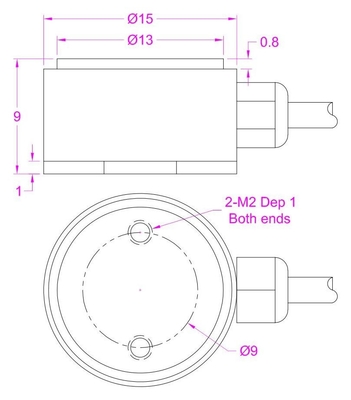

Dimensions(in milimeter)
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb | |
| FCFK-50N | 0-50N / 0-0-10lb | |
| FCFK-100N | 0-100N / 0-20lb | |
| FCFK-200N | 0-200N / 0-45lb |
Specifications
| Capacity |
1kg / 2kg / 5kg / 10kg / 20kg |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code |
Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV.
Example one: 2.0mV/V load cell with 10V power supply,the output range is 0~20mV.
Example two: 1.0mV/V load cell with 5V power supply,the output range is 0~5mV.
Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: 10kg compression load cell working with 0-10V amplifier,the load-output relationship will be 0-10kg load VS 0-10V output,it is linear within the error range.
Load cell + Digital indicator
Digital indicator can work directly with load cell without signal amplifier,here are some functions from the indicator:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output
