Flange Type Compression Load Cell 2 ton 1ton 500kg 200kg 100kg 50kg 20kg

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Certification:	CE
Model Number:	FFA

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	3-20 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	2230pcs/month

Contact Now

Detailed Product Description

Type:	Flange Type Compression Load Cell	Capacity:	20kg 50kg 100kg 200kg 500kg 1t 2t
Output:	Analog Sensor	Force Direction:	Tension And Compression
Connection:	Flange-to-Flange

Flange Type Compression Load Cell 2 ton 1ton 500kg 200kg 100kg 50kg 20kg

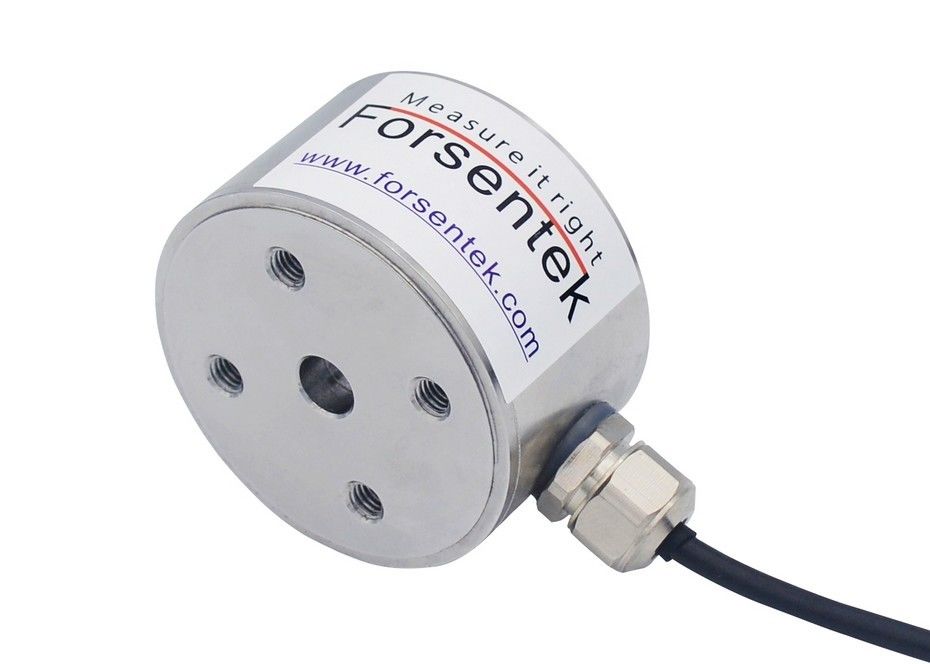

Flange type compression load cell FFA is made of stainless steel utilizing strain gauge technology intended for both tension and compression force measurement. Flange to flange compression force transducer FFA offers 0-20kg / 0-50kg / 0-100kg / 0-200kg / 0-500kg / 0-1000kg / 0-2000kg seven measuring ranges to choose from,high accuracy with maximum 0.1% non-linearity of the rated capacity.Force sensor has been widely used for spring testing, welding clamp force control, hand press force verification, force distribution analysis, actuator thrust measurement, assembly force monitoring and other industrial applications. Besides the standard size and capacities,Forsentek is also capable of and willing to provide custom design service as per client’s request.

100kg_thrust_load_cell_50kg compression_load_cell_2 ton_1 ton

Specifications

Ordering code	Measurement Range	Force direction
FFA-200N	0-200N / 0-20kgf	Tension/compression
FFA-500N	0-500N / 0-50kgf
FFA-1kN	0-1kN / 0-100kgf
FFA-2kN	0-2kN / 0-200kgf
FFA-5kN	0-5kN / 0-500kgf
FFA-10kN	0-10kN / 0-1000kgf
FFA-20kN	0-20kN / 0-2000kgf

Specifications

Rated capacity	200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN 20kg / 50kg / 100kg / 200kg / 500kg / 1000kg / 2000kg 45lb / 110lb / 220lbs / 450lbf / 1.1klb / 2.2klb / 4.5klb
Rated output	2.0 mV/V	Compensated temperature	-10...+40^oC
Excitation	3-15V	Operating temperature	-20...+60^oC
Zero balance	±0.05mV/V	Temperature shift zero	±0.02% R.O./^oC
Nonlinearity	±0.1% R.O.	Temperature shift span	±0.02% R.O./^oC
Hysteresis	±0.1% R.O.	Input resistance	385±30 ohms
Nonrepeatability	±0.05% R.O.	Output resistance	350±10 ohms
Creep(5min)	±0.05% R.O.	Insulation resistance	>5000Mohms
Safe overload	150% F.S.	Ingress protection	IP62
Ultimate overload	200% F.S.	Material of element	Stainless steel
Cable	Ø3*3000mm 4-core shielded cable
Wiring code	Compression@ Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output-

Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: 2.0mV/V load cell with 10V power supply,the output range is 0~20mV (-20mV...+20mV for bidirectional transducer).
Example two: 1.0mV/V load cell with 5V power supply,the output range is 0~5mV (-5mV...+5mV for bidirectional sensor).

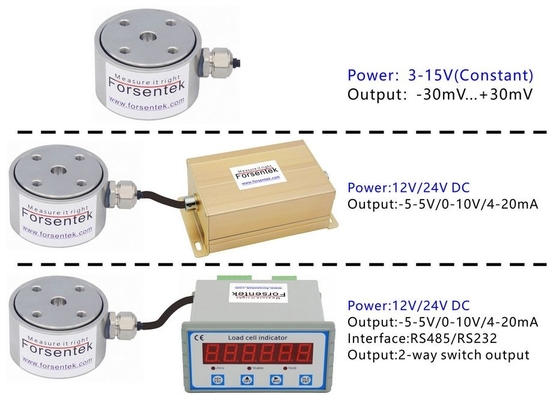

Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Thrust force load cell FFA-10kN working with 0-10V amplifier,the load-output relationship will be 0-10kN load VS 0-10V output,it is linear within the error range.

Compression_Load_Cell_With_Dispaly_Unit

Load cell + Digital indicator
Digital indicator can work directly with load cell without signal amplifier,here are some functions from the indicator:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output

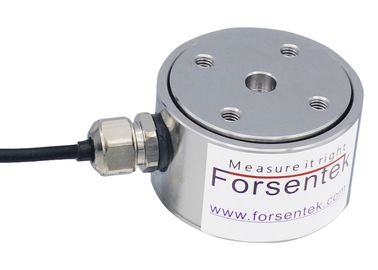

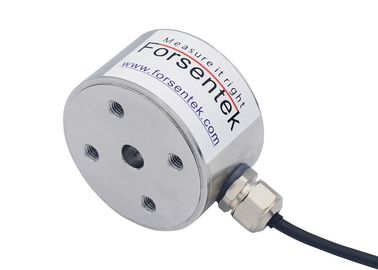

Flange Type Compression Load Cell 2 ton 1ton 500kg 200kg 100kg 50kg 20kg

500kg_thrust_load_cell_200kg

Click here to download datasheet
