Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell

Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell

    • Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell
    • Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell
    • Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell
  • Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Force Load Cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: F3K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 5-25 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1400pcs/month
    Contact Now
    Detailed Product Description
    Type: Triaxial Load Cell Usage: 3-axis Force Measurement
    Output: Analog Sensor Force Range: 50kN 100kN 200kN
    Axis: Fx/Fy/Fz

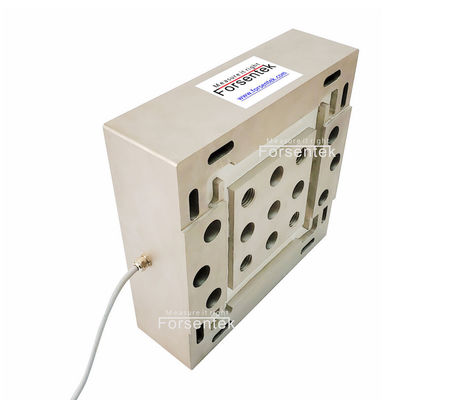

    Low Profile 3-Axis Load Cell 5000kg 10000kg 20000kg Multi Axis Load Cell

    High capacity 3 component load cell F3K is made of alloy steel based on strain gauge technology intended for 3-axis force measurement in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction. Low profile multi axis force transducer F3K offers 0-5000kg / 0-10000kg / 0-20000kg three measuring ranges to choose from.Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement and so on.

    low_profile_3_axis_load_cell_200kN_100kN_50kN
    Dimensions

    high_capacity_3_axis_load_cell_20t_10 ton_5t

    Specifications

    Rated Capacity

    50kN / 50000kg / 11.2klb

    100kN / 10000kg / 22.5klb

    200kN / 20000kg / 45klb

    Sensitivity 1.0mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Non-linearity ±0.3% R.O.
    Hysteresis ±0.3% R.O.
    Non-repeatability ±0.1% R.O.
    Creep(5min) ±0.05% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature 0...+40oC
    Operating temperature -10...+60oC
    Temperature shift on zero ±0.03% R.O./oC
    Temperature shift on span ±0.02% R.O./oC
    Input resistance 700±100 ohms
    Output resistance 700±100 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP65
    Material of element Alloy steel
    Cable Ø6*3000mm 12-pin shielded
    Wiring code 4-wire connection for each axis


    Multi component force sensor 200kN 100kN 50kN 3-component load cell
    low_profile_multi_component_force_sensor_200kN_100kN_50kN
    Click here to download datasheet
